SolaX X1-FIT G4 7.5kW AC Coupled Battery Inverter and 3-12kWh SolaX T30 Battery Energy Storage System
Optimise Your Energy Usage with 3-12kWh AC Coupled Energy Storage System
Trade Only Product - MCS or NICEIC Membership Required
The AC Coupled Energy Storage System (ESS) provides an efficient solution for harnessing energy from cost-effective sources like solar panels and off-peak Octopus mains power. This system allows users to utilise stored energy effectively, avoiding low feed-in tariffs and expensive peak-rate power.
Zero VAT applies to new residential energy storage batteries when purchased from your installer. Benefit from our cost-effective battery installation service (starting at just £199) and pay zero VAT on your battery installation. Click here to request a quote or contact us via live chat or call 020 8064 0335 for expert advice.

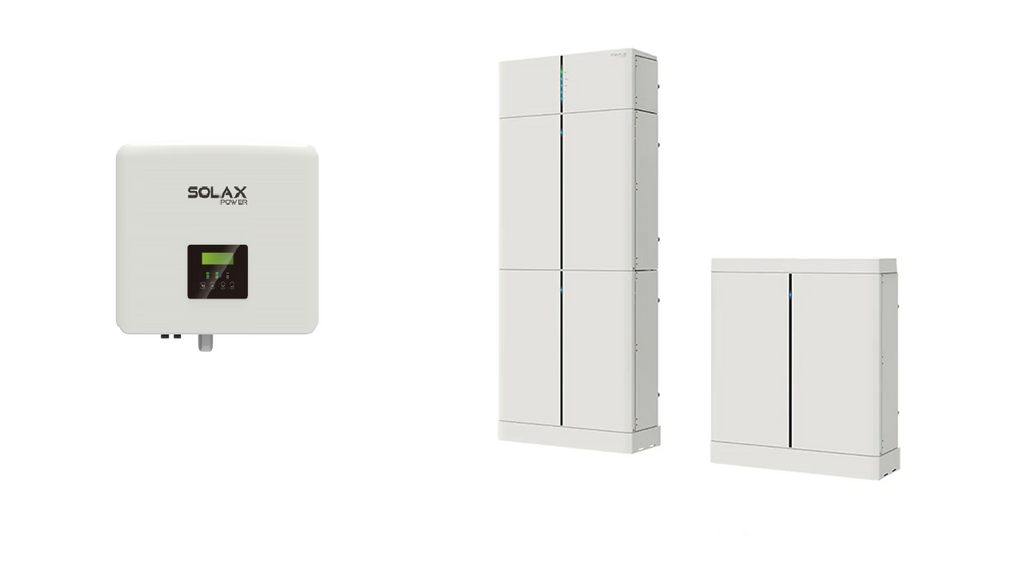

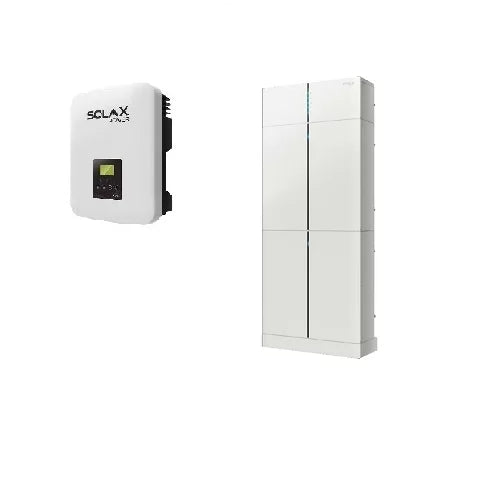

The SolaX X1-FIT G4 7.5kW AC Battery Inverter and 3-12kWh SolaX T30 Battery Energy Storage System (3-12kWh/7.5kW AC Coupled ESS) comprises:
- 1x / 2x / 3x or 4x (depending on the selected option) SolaX HV10230 3.0kWh Triple Power T30 Battery Module
- 1x SolaX X1-FIT G4 7.5kW AC Coupled Battery Inverter
- 1x SolaX MC0600 Triple Power Battery Management System
This 3-12kWh/7.5kW AC Coupled ESS efficiently manages energy usage, ensuring a stable electricity supply and reducing costs by charging the battery with solar or low-priced off-peak Octopus electricity. Coupled with a private power source like on-grid solar panels, it provides a continuous 24/7 power supply for your home.
The 7.5kW X1-FIT G4 AC Coupled Battery Inverter is designed for compatibility with an external backup generator, seamlessly supplying electricity during prolonged grid outages when the battery storage is depleted.
- SolaX HV10230 3.0kWh Triple Power T30 Battery Module: A high-performance, scalable battery storage module with a modular design for maximum flexibility. Easy installation, plug-and-play solution, 95% charge/discharge efficiency, 90% depth of discharge, and a cycle life of over 6000 cycles.
- SolaX X1-FIT G4 7.5kW AC Coupled Battery Inverter: A high-quality inverter converting solar energy to AC energy, compatible with high voltage batteries. Suitable for indoor or outdoor installation, featuring natural cooling, quiet operation, and low maintenance.
- SolaX MC0600 Triple Power Battery Management System: A communication module ensuring optimal battery performance, extending battery life, reducing failure risks, and allowing constant charge level monitoring.
SolaX X1-FIT G4 7.5kW AC Battery Inverter Operating Modes:
- Self-use (default): Battery will discharge for local loads first, and the grid will supply power when the battery capacity is insufficient.
- Feed-in priority: The priority of inverter output power is: feeding to the grid, then supplying the load, then charging the battery. This mode is ideal for areas with high feed-in tariffs.
- Force time use: Charging and discharging times can be set flexibly in this mode.
- Backup mode: The battery will stop discharging to maintain higher capacity when the grid is on. Only when the grid is off will the battery discharge to keep emergency loads working. This mode is suitable for areas prone to blackouts.
The system seamlessly integrates with smart Octopus tariffs, allowing automatic optimisation for Plunge Prices and super cheap prices. With solar panels and the battery storage system, your electricity price can be significantly reduced.
Enjoy a 2-3 working days' delivery within the UK (longer to the Highlands, islands, and Northern Ireland).
For more information, call 020 8064 0335 or email info@energian.co.uk.
| SOLAX TRIPLE POWER T30 BATTERY STACK |
| Battery Type: Lithium Iron Phosphate (LiFePO4) |
| Total Energy: 3.0kWh |
| Useable Energy: 2.7kWh |
| Nominal Voltage: 102.4V |
| Operating Voltage Range: 90-116V |
| Rated Capacity: 30A |
| Rated Power: 2.5kW |
| Max. Power: 3.0kW |
| Maximum Charge Voltage: 2pcs 116.8V 3pcs 175.2V 4pcs 233.6V 5pcs 292.0V 6pcs 350.4V |
| Recommended Charge/Discharge Current: 25A |
| Max. Charge/Discharge Current: 30A |
| Available Charge/Discharge Temperature Range: -30 ~ +50°C |
| Storage Temperature: -20 ~ +50°C (3 months) |
| Charge/Discharge Efficiency: 95% |
| Cycled life (90% DOD): 6000 cycles |
| Depth of Discharge: 90% |
| Expected Life Time / Warranty: 10 years |
| Protection Level: IP65 |
| Net Weight: BMS MC0600 - 7.5kg; Battery Module HV10230: 34.5kg |
| Size: BMS MC0600 - 483×174×153mm; Battery Module HV10230: 483×472×153mm |
| SOLAX 1 PHASE X1-FIT G4 7.5KW AC COUPLED BATTERY INVERTER |
| BATTERY DATA |
| Battery Type: Lithium Iron Phosphate (LiFePO4) |
| Rated Battery Voltage: 80-480V |
| Max. Charge/Discharge Current: 30A |
| AC INPUT (GRID SIDE) |
| Max. Apparent AC Input: 9200VA |
| Max. AC Current: 40A |
| Nominal Grid Voltage (AC Voltage Range): 220/230/240V |
| Nominal Grid Frequency/Range: 50/60Hz |
| AC OUTPUT (GRID SIDE) |
| Nominal AC Power: 7500W |
| Max. AC Apparent Power: 7500VA |
| Max. AC Output Current: 32.6A |
| Rated Grid Voltage: 220/230/240V |
| Rated Grid Frequency: 50/60Hz |
| Power Factor: 1 ( Adjustable from 0.8 leading to 0.8 lagging ) |
| THDi: <2% @rated power |
| EPS (OFF-GRID OR BACK-UP) OUTPUT (WITH BATTERY) |
| Nominal Output Power: 7500W |
| Peak Apparent Power: 7500VA |
| Max. Continuous Current: 32.6A |
| Nominal Voltage; Frequency: 230V, 50/60Hz |
| Switch Time: <10msec |
| Parallel Operation: Yes |
| EFFICIENCY |
| Battery Charge/Discharge Efficiency: 97.0%/97.0% |
| Operating Temperature: -30 ~ +60°C (derating at 45°C) |
| Protection Degree: IP65 |
| Size: 482×417×181mm |
| Net Weight: 23kg |
- 1x / 2x / 3x or 4x (depending on the chosen option) SolaX HV10230 3.0kWh Triple Power T30 Battery Module
- 1x SolaX X1-FIT G4 7.5kW AC Coupled Battery Inverter
- 1x SolaX MC0600 Triple Power Battery Management System
- 1x SolaX DDSU666 Chint Single Phase Meter
