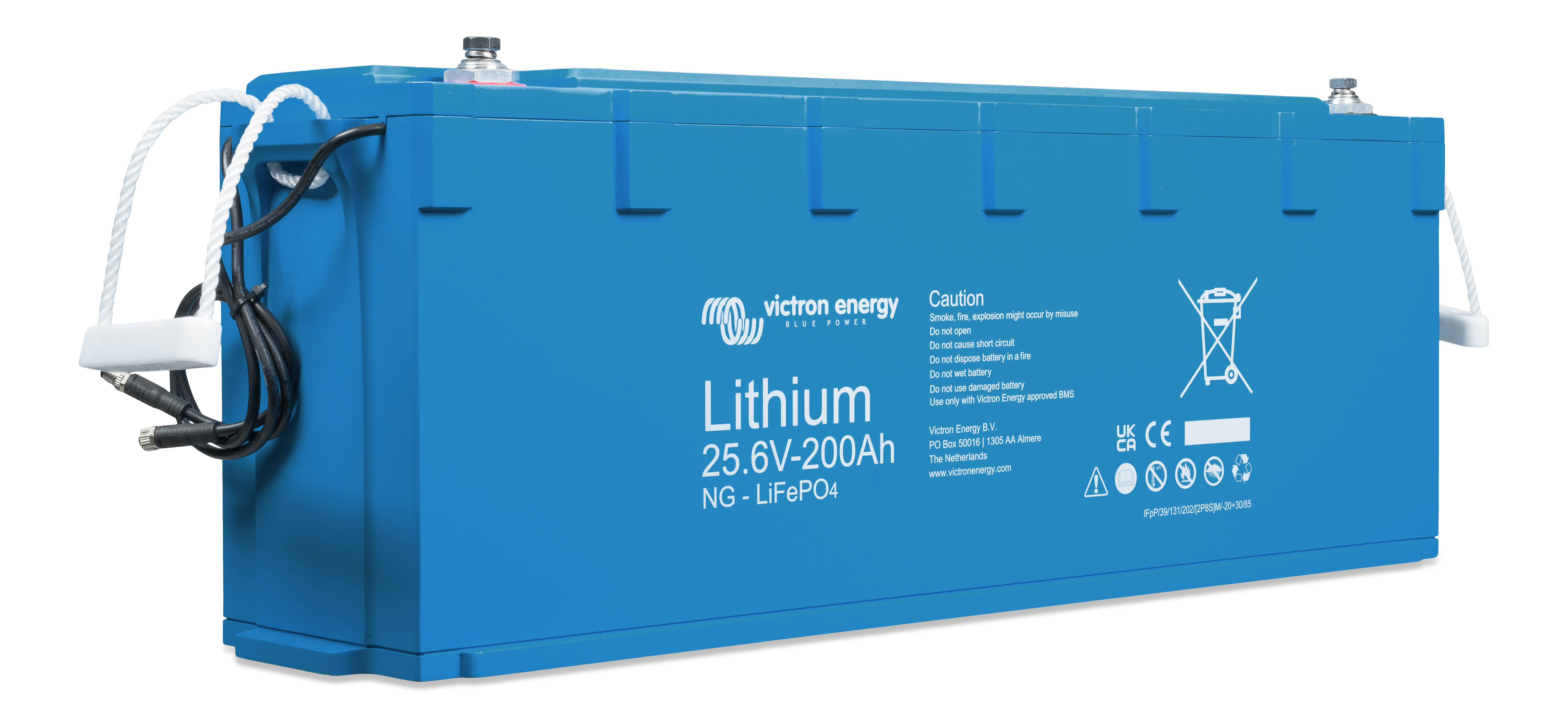

Victron Lithium NG 25.6V 200Ah LiFePO4 Battery
Smart, Safe, Scalable Energy Storage for Off-Grid and Hybrid Systems
The Victron Lithium NG 25.6V 200Ah battery delivers reliable, high-capacity energy storage in a rugged IP65 enclosure. Using Lithium Iron Phosphate (LiFePO₄) technology, this next-generation battery is designed for professional off-grid, marine, and backup power systems.
Built-in cell balancing, monitoring, and an integrated current shunt ensure optimal performance and safety. The battery communicates with a Lynx Smart BMS (sold separately), providing full system visibility via VictronConnect or a GX device and remote access through the VRM Portal.
🔧 Key Features
-
25.6V / 200Ah (5.12kWh) Capacity
-
IP65 Rated – sealed against dust and water jets
-
Bluetooth Monitoring (via BMS)
-
Scalable – connect up to 50 batteries for 384kWh total capacity
-
Mountable with Brackets – secure in place with included mounts
-
Long Cycle Life – up to 5000 cycles at 50% DoD
📱 Smart Integration
-
Real-time cell voltage, temperature, and current monitoring
-
Auto-configuration with Victron BMS
-
View data via:
-
VictronConnect App (Bluetooth)
-
GX Device (e.g. Cerbo GX)
-
Victron Remote Management (VRM) Portal
-
⚡ Electrical Specifications
-
Nominal Voltage: 25.6V
-
Nominal Capacity: 200Ah (5.12kWh)
-
Max Continuous Discharge Current: 200A
-
Max Pulse Discharge (10s): 400A
-
Max Continuous Charge Current: 100A
-
Max Pulse Charge (10s): 200A
-
Charge Voltage Range: 28.0 – 28.8V
-
Float Voltage: 27V
-
End of Discharge Voltage: 22.4V
-
Internal Resistance: 2mΩ
🧱 Mechanical & Environmental
-
Dimensions (HxWxD): 235 × 341 × 160 mm
-
Weight: 19 kg
-
Mounting: Brackets or straps, can be mounted on side (not upside-down)
-
Operating Temp (Discharge): -20°C to +50°C
-
Operating Temp (Charge): +5°C to +50°C
-
Storage Temp: -45°C to +70°C
-
Self-Discharge: ≤ 2% per month
-
Humidity (Non-condensing): ≤ 95%
🛡️ Safety & Certifications
-
UL1973, UL9540A, IEC62619 (cells)
-
IP65 ingress protection
-
Repairable – cover can be removed for servicing
-
Firmware updates via BMS
🔌 What's Required
-
Mandatory: Lynx Smart BMS NG 500A or 1000A (M10 busbars)
-
Recommended: GX Device for system monitoring, M8 extension cables for BMS connection
Ideal for:
✔ Off-grid solar power systems
✔ Battery backup for critical loads
✔ Marine & mobile energy storage
✔ Scalable commercial storage applications
📦 Low Stock - please call to verify before placing an order. Pre-order now to secure early delivery.
Victron Energy LiFePO4 Battery 25.6V/200Ah NG Datasheet
Looking for a complete off-grid system? Need help with system design? Contact our team for tailored advice.
