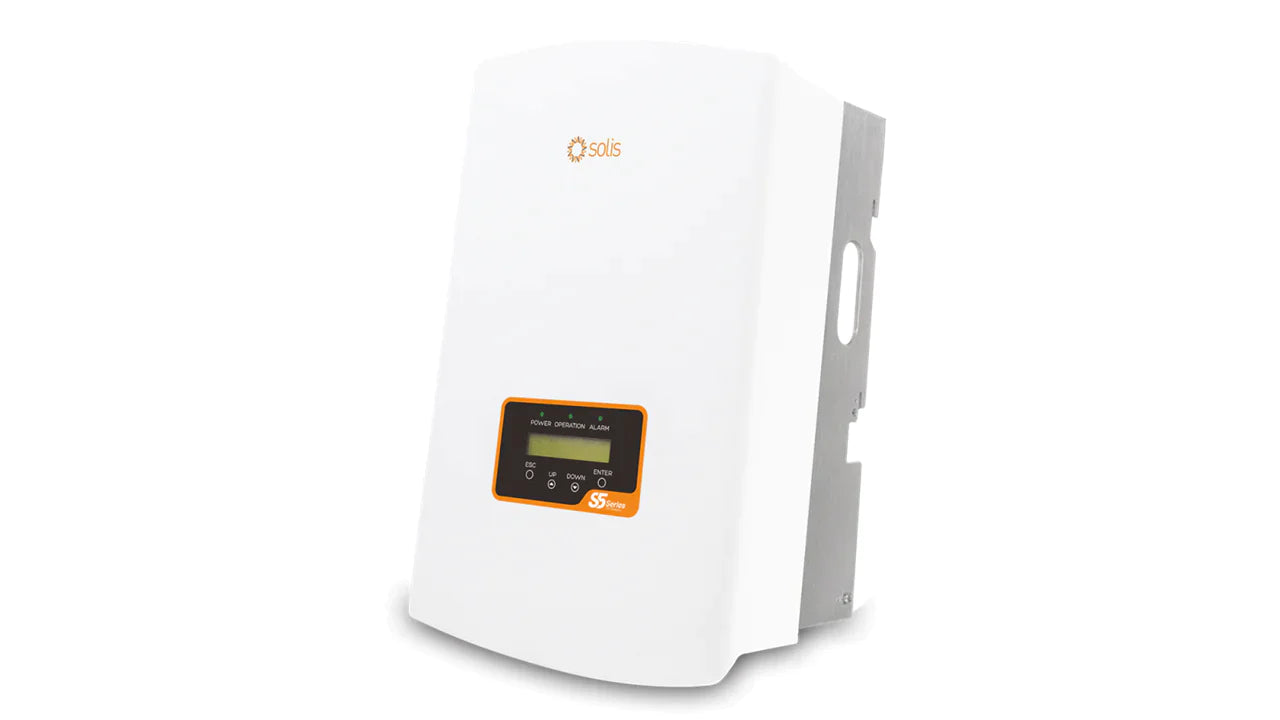

Unleash Maximum Solar Power with Solis S6 6kW Inverter
- Max PV Power of 9000W
- Maximum String Input Current 14A
- DRM (Demand Response Mode) Integrated and Backflow Power Control Function for Smart Grid Requirements
- Super High-Frequency Switching Technology with Max. Efficiency Over 97.7%
- Dual MPPT Design with Precise MPPT Algorithm
- Export Limitation Built-in - Requires CT Clamp (Sold Separately)
- Integrated AFCI (DC Arc-Fault Circuit Protection)
- Integrated DC Switch for Safe PV Maintenance
- Rated IP66
- 5-Year Standard Warranty, Extendable to 10 or 20 Years!
Features:
- Elevate your solar power experience with the Solis S6 6kW S6-GR1P6K Grid-tie Inverter, the pinnacle of grid-tied residential inverters from Solis. Designed for affordability and excellence, the S6 dual MPPT inverter leads the way in small residential rooftop installations. Explore the ideal solution for all your green energy needs.
- The Solis S6 6kW S6-GR1P6K Grid-tie Inverter is suitable for green energy in small residential and commercial rooftops, this inverter adopts full digital control technology, an advanced topological structure, and accurate dual MPPT algorithms, achieving efficiency higher than the in dustry-leading conversion, reaching a maximum of 97.7%.
- Additional Features:
- Integrated DC Switch Version: No need for an external DC Isolator. If you already have one, it's not an issue; you can simply disable one of them!
- For monitoring, enhance your system with a Solis Wi-Fi data logging stick.
- Enjoy peace of mind with a 5-year warranty as standard, extendable to 10 or 20 years.
- The Solis S6 6kW S6-GR1P6K Grid-tie Inverter operates with exceptional efficiency, maximizing the conversion of solar energy into usable electricity. Advanced dual MPPT technologies ensure optimal performance even in challenging weather conditions such as dusk or partial shade.
- Delivery: 2-3 WORKING DAYS within the UK (delivery times may vary to the Highlands, islands, and Northern Ireland). Unleash the full potential of solar power with Solis S6 6kW Inverter!
Detailed specifications:
Model: S6-GR1P6K |
INPUT PV |
Max. Input Power: 9000W |
Max. Input Voltage: 600V |
Start-up Input Voltage: 120V |
Rated Input Voltage: 330V |
MPPT Operating Voltage Range: 90-520V |
Max. Input Current: 14A/14A |
Max. Short-circuit Current: 22A/22A |
No. of Independent MPP Trackers: 2 |
AC OUTPUT (GRID) |
Rated Output Power: 6000W |
Max. Output Power: 6000W |
Max. Output Apparent Power: 6000VA |
Rated Grid Output Current: 27.3A |
Max. Grid Output Current: 27.3A |
Rated Grid Voltage: 220-230VAC |
Rated Grid Frequency: 50/60Hz |
Power Factor: >0.99 ( Adjustable from 0.8 leading to 0.8 lagging ) |
THD: <3% |
EFFICIENCY |
Max. Efficiency: 97.7% |
Operating Temperature: -25 ~ +60°C |
Protection Degree: IP66 |
Size: 310 x 160 x 543mm |
Net Weight: 12kg |
- 1 X Solis S6 6kW S6-GR1P6K Grid-tie Inverter,
- 1 X Solis S6 6kW S6-GR1P6K Grid-tie Inverter User's Manual.
Documents available for download:
