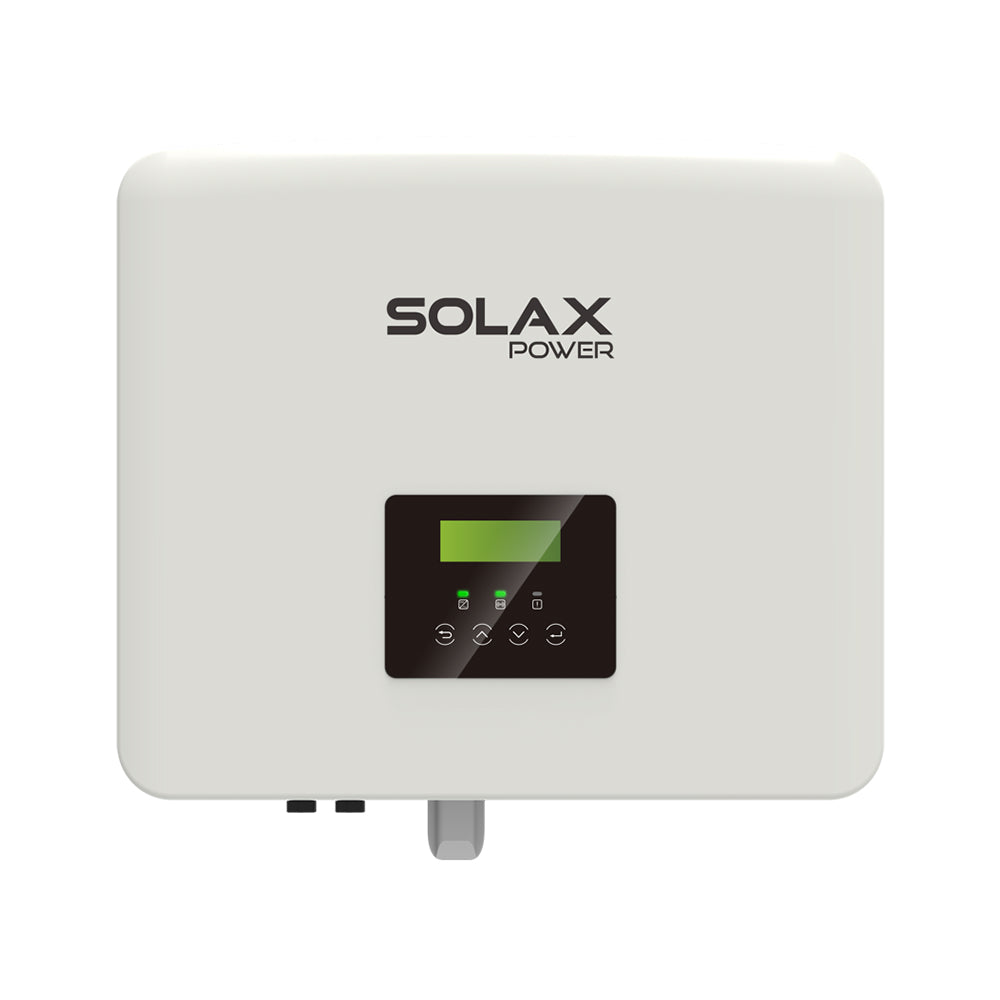

Maximise Your Energy Efficiency with SolaX X1-Hybrid G4 5.0kW HV Single Phase Hybrid Inverter
Trade only product - MCS or NICEIC membership required.
Homeowners - pay zero VAT, save money and time, when you order an installation via one of our trusted partners! Click here to enquire today.
Are you an installer? This product is designed for quick installation. Become a partner, delight your customers and grow your business. Call 020 8064 0335 to become an authorised partner today.
SolaX is a reputable company renowned for its expertise in the development and production of renewable energy products, with a particular focus on solar inverters and energy storage solutions for both residential and commercial applications.
SolaX is proud to launch the eagerly anticipated fourth generation of their market-leading solar battery storage product, the Hybrid G4 inverter, ideal for home solar systems. When paired with a battery, this inverter provides an uninterruptible power supply to a home. SolaX X1-Hybrid G4 5.0kW HV Single Phase Hybrid Inverter is compatible with SolaX lithium-ferro-phosphate (LiFePO4) batteries Triple Power T30 3.0-12.0kWh, Triple Power T58 HV 5.8-17.3kWh, Triple Power T-BAT-SYS-HV-S2.5 5.1 – 33.2kWh and Triple Power T-BAT-SYS-HV-S3. 6 7.37 – 47.92kWh.
Features:
- High-effcient:
- 200% PV oversized and up to 110% AC overload output
- Higher efficiency on charging and discharging, up to 97.0%
- Built-in shadow tracking function
- Economic:
- 16A DC input current, support high power solar panel
- Up to 150% PV input
- Store the surplus energy from PV to battery
- Low start voltage
- Less energy loss in battery to inverter supply
- Intelligent:
- Up to 120% EPS output for 1h
- Switchover time <10ms
- Quick configuration with U-disk
- Lithium-ion & Lead-acid battery compatible
- CT compatible, loads respond within 0.3s
- Intelligent loads management (e.g., Heat pump)
- On & Off-grid parallel function, up to 15kW
- 5 work modes, 2 charging periods available
- VPP ready, ancillary service in power market
- Fast Delivery Across the UK: Experience quick 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland).
Detailed specifications:
| Model: X1-HYBRID-5.0-D (D means "with DC switch") |
| BATTERY |
| Battery Type: Lithium-Ion (LiFePO4) |
| Battery Voltage Range: 80 ~ 480V |
| Max. Continuous Charge/Discharge Current: 30A |
| DC INPUT PV |
| Max. PV Array Power: 10,000W |
| Max. PV input power* (PV1+PV2): 7,500W |
| Max. Input Voltage: 600V |
| Start output voltage: 90V |
| Nominal input voltage: 360V |
| MPPT Voltage Range: 70 ~ 550V |
| No. of MPPT trackers / Strings per MPP tracker: 2 (1/1) |
| Max. input current (input PV1 / input PV 2): 16A/16A |
| Max. short circuit current (input PV1 / input PV 2): 20A/20A |
| MPPT Number / Max. Input Strings Number per MPPT: 2/(1/1) |
| AC INPUT/OUTPUT |
| Nominal AC Output Power: 5000W |
| Max. AC Output Apparent Power: 5500VA |
| Max. AC Output Current: 23.9A |
| Max. AC Input Apparent Power: 9,200W |
| Max. AC Input Current: 40A |
| Nominal AC Voltage: 230-240VAC |
| Nominal Grid Frequency: 50/60Hz |
| Displacement Power Factor: 0.8 leading ~ 0.8 lagging |
| THDi (Rated Power): <2% |
| EPS (OFF-GRID OR BACK-UP) OUTPUT (WITH BATTERY) |
| Nominal Output Power: 5000W |
| Peak Apparent Power: 6000W 1hrs. |
| Max. Continuous Current: 21.7A |
| Nominal Voltage [V]; Frequency [Hz]: 230V; 50/60Hz |
| Switch Time: <10ms |
| Parallel Operation: YES |
| SYSTEM DATA |
| Max. Efficiency: 97.6% |
| Euro Efficiency: 97.0% |
| Battery Charge / Discharge Efficiency **: 97.0 / 97.0 |
| Protection Degree: IP65 |
| Operating Temperature: -35 ~ +60 (Derating above +45) |
| Relative Humidity: 0-100% |
| Size: 482×417×181 mm |
| Net Weight: 24kg |
** PV to BAT Max. efficiency 97.0%, BAT to AC Max. efficiency 97.0%
- 1 X Solax X1-Hybrid G4 5.0kW HV Single Phase Hybrid Inverter,
- 1 X Solax X1-Hybrid G4 5.0kW HV Single Phase Hybrid Inverter User's Manual.
