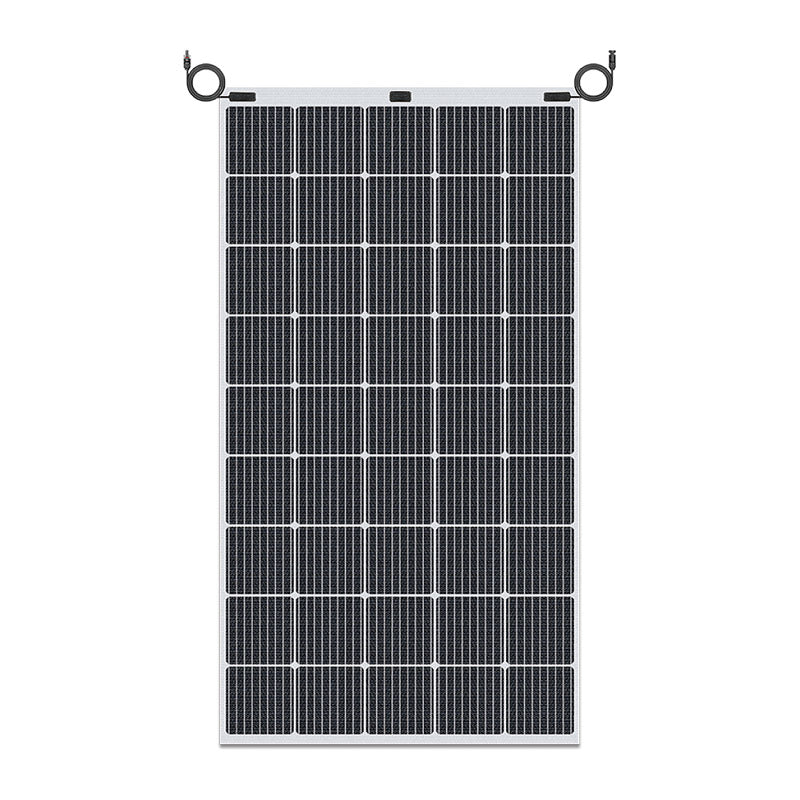

Energian 270W Semi-Flexible Composite Solar Panel with 0.9m Cable


By Energian
Minus Plus

Delivery available

More details Right

270W Semi-Flexible Solar Panel with High-Efficiency Monocrystalline PERC Cells – Lightweight, Flexible Power for Off-Grid and Mobile Use

This versatile 270W semi-flexible solar panel delivers reliable off-grid power in a slim, lightweight package. Built with premium Monocrystalline PERC cells achieving >23% efficiency, it’s an ideal choice for campervans, boats, mobile systems, and custom lightweight installations where flexibility and performance are key.

Reinforced with high-strength polymer and EVA layers, the panel offers superior resistance to cracking, trampling, and mechanical stress, while maintaining excellent energy output and low profile.

Product Features:

  • ⚡ High-efficiency Monocrystalline PERC cells – Offers >23% energy conversion for maximum output in compact spaces

  • 🔬 Advanced PERC technology – Enhances light absorption and improves performance in low light and high-temperature conditions

  • 🛡️ Composite polymer construction – Reinforced with EVA and TPT for excellent durability and flexibility

  • 🪶 Slim, lightweight design – Weighs 3.2kg, approximately 15–20% lighter than traditional rigid panels

  • 📏 Compact dimensions – Panel size: 1587 × 898 × 2mm, perfect for tight or curved installations

  • 🔧 Flexible mounting options – Ideal for curved or uneven surfaces; install via bonding or mechanical fixings

  • 🌊 IP68 waterproof rating – Superior protection against dust, water, and harsh environments for marine and outdoor use

  • 🔌 Ready-to-use – Includes 2 × 90cm cables (4.0mm²) with waterproof MC4 connectors

  • ✅ Positive power tolerance – Guaranteed power output of 270–273W

  • 🛠️ Backed by a 2-year warranty – Confidence and support for your mobile or off-grid installation

270W Flexible Solar Panel

Electrical Specifications

Max Power (Pmax) 270W
Max Power Voltage (Vmp) 24.75V
Max Power Current (Imp) 10.9A
Open Circuit Voltage (Voc) 29.7V
Short Circuit Current (Isc) 11.7A
Maximum System Voltage 600V
Series Fuse Rating 10A
Cell Efficiency >23%
Number of Cells in Series 45
Cell Dimensions 166 × 166 mm
Max Power Tolerance 0 ~ +3W

Temperature Coefficients

Power -0.38% / °C
Voltage -60.08mV / °C
Current 2.2mA / °C

Mechanical Specifications

Weight 3.2 kg
Dimensions 1587 × 898 × 2 mm
Cable 90 cm, 2x 4.0mm² with MC4 connectors

Panel Construction

  • Multi-layered composite including EVA and high-strength polymer top surface

  • Monocrystalline PERC solar cells

  • Durable TPT backing for long-term mechanical and environmental protection

  • Waterproof junction box and factory-installed MC4 connectors

Ideal For:

  • Boats, yachts, and marine applications

  • Campervans, caravans, and expedition vehicles

  • Portable and mobile solar setups

  • Lightweight off-grid power systems

  • Curved or space-constrained installations
