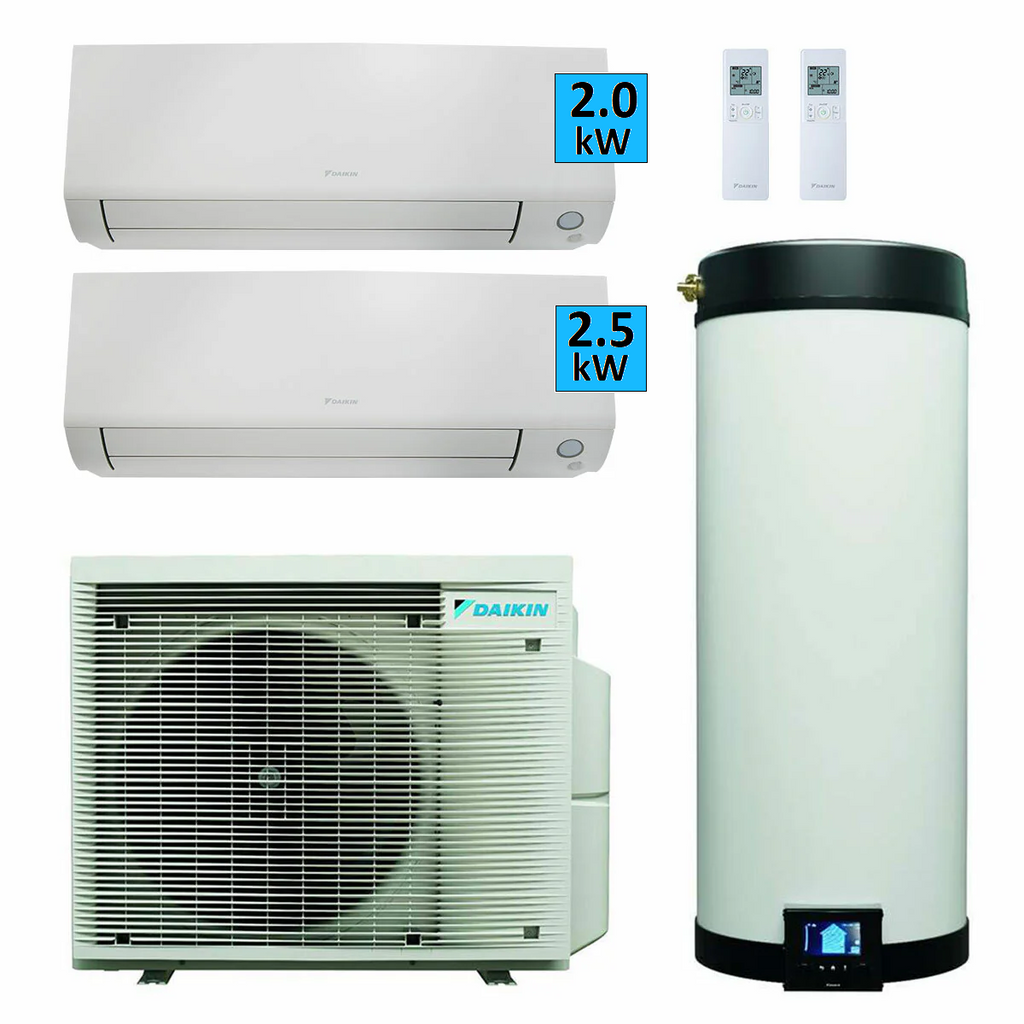

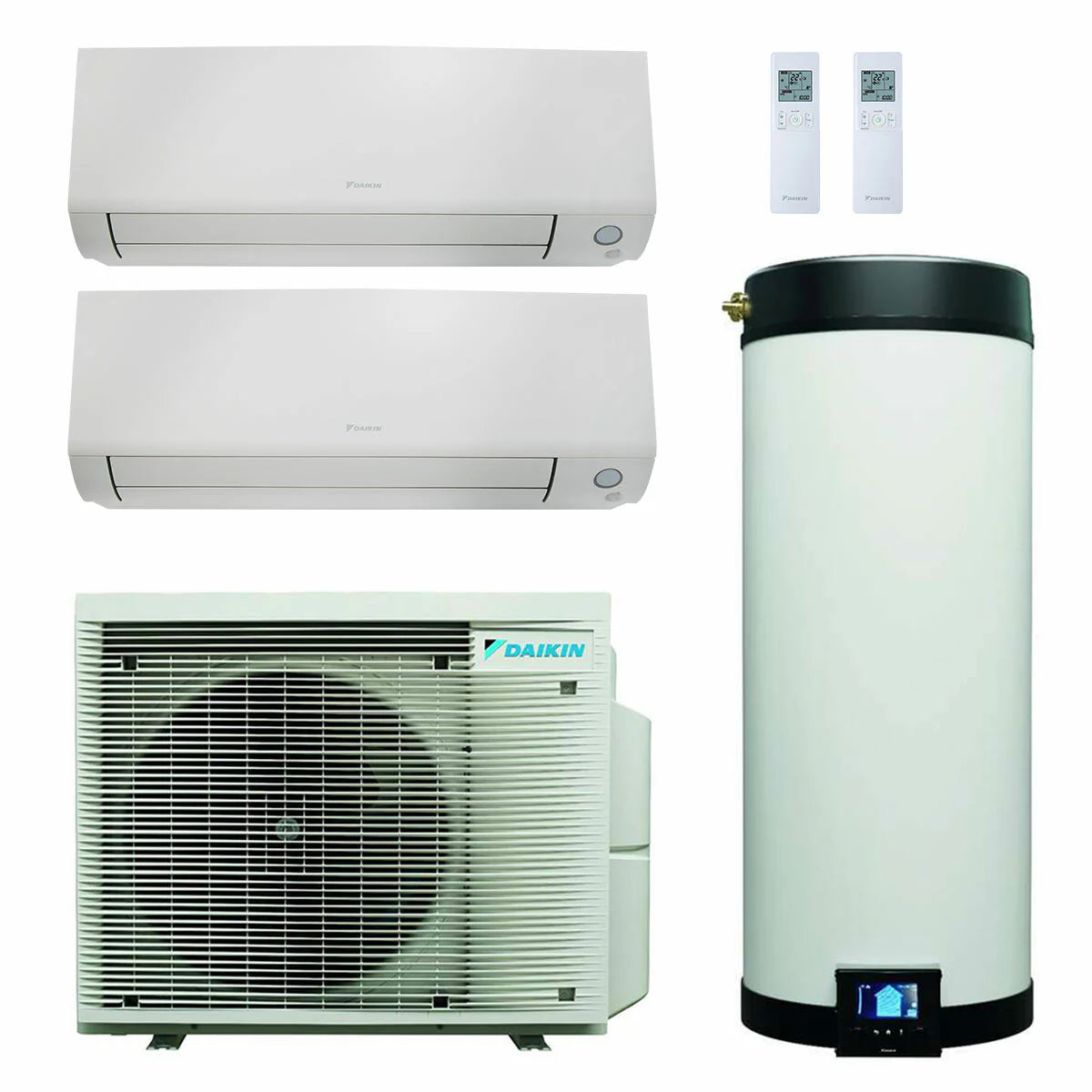

Daikin Air-to-Air Heating & Cooling and Hot Water Heat Pump System for 1-Bedroom Houses, Bungalows, Studio Flats
All-in-One Daikin Multi+ Air-to-Air & Air-to-Water Heat Pump System
This comprehensive solution includes one Daikin Multi+ Outdoor Unit, two Indoor Units, and a 120L Domestic Hot Water (DHW) Tank. It is perfect for 1-bedroom houses and bungalows up to 70 sq meters. Options for different types of indoor units are available to meet your unique needs (contact us for additional configurations).
System Components:
- 1 x Daikin 4MWXM52A Outdoor Unit: Provides 6.8kW heating and 5.2kW cooling capacity.
- 2 x Daikin Perfera All Seasons Wall-Mounted Indoor Units: Available in various capacities (detailed below).
- 1 x Daikin EKHWETU120BV3 Domestic Hot Water Tank: 120-liter capacity for optimized hot water usage.
Why Choose Daikin Multi+?
Efficient & Multi-Functional: This single, space-saving system combines air-to-air and air-to-water heat pump technology to provide cooling, heating, and domestic hot water. It is ideal for families seeking comfort, energy savings, and sustainability. The system is particularly suitable for new builds and replacing inefficient electric water heaters.
Important Installation Requirement:
This product must be installed by an FGAS-certified installer in accordance with FGAS Regulations.
Main System Components Overview:
Outdoor Unit: Daikin 4MWXM52A
The outdoor unit is the core of this system, featuring advanced inverter and heat pump technology, eco-friendly R32 refrigerant, and simultaneous indoor and DHW functionality. It connects to both indoor air units and the water tank for optimized space and energy efficiency.
- Energy Efficiency: Class A+++ for cooling, A++ for heating, A for domestic water heating.
- Advanced Inverter Compressor: Reduces energy consumption by up to 30%, maintains stable indoor temperatures, and minimizes energy waste.
- Low Noise Operation: Sound pressure level: 46-47 dB(A).
Indoor Units: Daikin Perfera Wall-Mounted
These modern indoor air conditioning units offer top-of-the-line air purification, energy efficiency, and ultra-quiet operation.
- Air Purification: Equipped with Daikin’s Flash Streamer technology, which removes viruses, allergens, bacteria, and odors from the air.
- Smart Controls: Manage via the Daikin Residential Controller App or integrate with Amazon Alexa and Google Home for voice control.
- Energy Efficiency: SEER (Seasonal Energy Efficiency Ratio) 8.51, SCOP (Seasonal Coefficient of Performance) 4.61.
- Quiet Operation: Produces as little as 19 dB(A), quieter than a whisper.
120L Domestic Hot Water (DHW) Tank
This tank, made from corrosion-resistant steel, ensures reliable hot water production and offers multiple operational modes to optimize energy consumption.
-
Operational Modes:
- Efficient Mode: Minimizes energy usage while ensuring hot water availability.
- Quick Mode: Heats water 30% faster than Efficient Mode.
- Powerful Mode: Uses electric resistance to heat water 50% faster than Efficient Mode.
- Simultaneous Heating and Hot Water Production: Keeps you comfortable even during winter months.
Specifications
| OUTDOOR UNIT | |
|---|---|
| Model | 4MWXM52A |
| Refrigerant | R-32 |
| Nominal Heating Capacity (min-max) | 6.80 (1.50-7.50) kW |
| Nominal Heating Power Consumption (min-max) | 1.50-1.59 (0.41-2.38) kWh |
| Nominal Heating COP (min-max) | 4.53-4.28 (3.66-3.15) |
| Seasonal COP (SCOP) | 4.61 |
| Heating Air Flow (min-max) | 41 (24-41) m³/min |
| Sound Level Heating | 47 dBA |
| Nominal Cooling Capacity (min-max) | 5.20 (2.10-6.60) kW |
| Nominal Cooling Power Consumption (min-max) | 1.07-1.10 (0.45-2.30) kWh |
| Nominal Heating EER (min-max) | 4.86-4.73 (4.67-2.87) |
| Seasonal EER (SEER) | 8.51 |
| Cooling Air Flow (min-max) | 42 (24-42) m³/min |
| Sound Level Cooling | 46 dBA |
| Size (L x W x H) | 974 x 401 x 734 mm |
| Weight | 60 kg |
| PERFERA WALL MOUNTED INDOOR UNITS | |
|---|---|
| Model | CTXM15-A (1.5kW) |
| Nominal Heating Capacity (min-max) | 1.80 (0.75-2.9) kW |
| Nominal Heating Power Consumption | 0.335 kW |
| Nominal Cooling Capacity (min-max) | 1.5 (1.05-2.35) kW |
| Nominal Cooling Power Consumption | 0.275 kW |
| Heating/Cooling Area | 15-20 m² |
For a complete list of technical specifications or additional information, please refer to the product manual or contact us directly.
