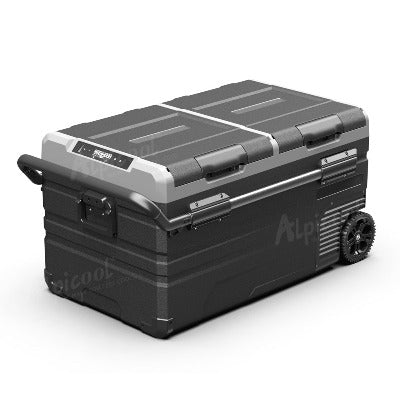

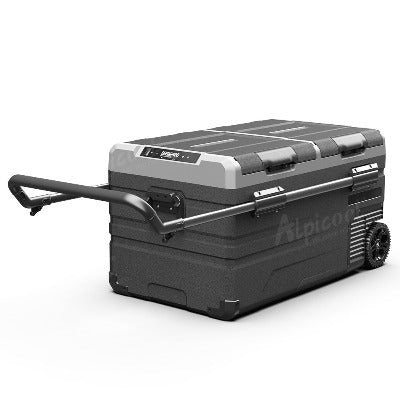

Alpicool 90L Portable Compressor Fridge and/or Freezer TWW95 with Battery - Solar Panel Optional

• Dual compartment: Individual temperature control for customised refrigeration. Features an efficient compressor with adjustable ECO and MAX modes.
• LCD display panel: Integrated LED light and internal baskets for convenience and organisation. The digital control panel offers precise electronic temperature adjustments.
• Versatile application: Suitable for cars, homes, outdoor activities, camping, RVs, campervans, boats, trucks, and caravans. The vibration-resistant design ensures safety during travel, complemented by a durable telescopic handle and wheels for easy mobility.
• Built-in lithium battery: 15600mAh (173Wh) battery, providing real-time battery power and voltage data on the control panel. The innovative battery design maintains cooling for up to 20 hours* when using the fridge/freezer outdoors.
• 3-stage car battery protection: Prevents draining the car battery, with the option to charge using Alpicool 100W solar panel with a DC5521 connector. NOTE: Do not use other 100W solar panels without a DC5521 connector.

• Mobile application: Bluetooth-enabled remote control for adjusting the refrigerator temperature (compatible with iOS/Android). Bluetooth 5.0 with a signal range of up to 20 metres.

• Two-year warranty.


* Data from Alpicool experiment: Keeps a 50L fridge cool at 5°C for 20 hours when the ambient temperature is 25°C.

• TWW95 fridge and/or freezer 90L capacity with 173Wh battery included X 1
• Car lighter DC adaptor X 1
• AC to DC adaptor X 1
• 3.5m DC cable X 1
• User manual X 1

Which compressor is used in the Alpicool TWW95 fridge?

The Alpicool TWW95 fridge incorporates LG refrigeration technology.

What power sources can the TWW95 fridge connect to?

The TWW95 fridge can be powered by a 220-240V AC grid via the provided adaptor, a 12/24V DC car battery through the supplied adaptor, or a backup lithium battery in the absence of AC/DC power. The battery charges simultaneously when the fridge is connected to AC/DC power.

How many watts does the Alpicool TWW95 fridge use?

The TWW95 fridge has a rated wattage of 60W.

Does the Alpicool TWW95 fridge have a battery?

The Alpicool TWW95 fridge is equipped with a detachable battery, which recharges through the DC plug in your car or the AC plug in various locations. Solar panels rated at 100W or 200W with a DC5521 connector can also be used to recharge the fridge battery.

How to recharge the battery?

When the fridge is connected to AC/DC power, the battery charges and discharges concurrently. To charge the battery separately, switch off the fridge and connect the battery to the 220-240V AC grid, 12/24V DC car battery, or a 12-50V solar panel. It's advisable to first connect a fully discharged battery to AC power. During charging, the power indicator turns green, and the four blue battery indicators display the charging status. Once fully charged, the power indicator turns off while the battery indicators remain active.

Warning!

Avoid charging the battery with 12V DC power and a solar panel simultaneously to prevent damage to the refrigerator.

How to turn the battery ON/OFF?

Long press the battery's switch button to turn it on/off. The power indicator's colours indicate the battery's charging (green), discharging (blue), and fully charged status (off).

Attention!

Don’t turn off the battery if the power indicator lights are green (indicating incomplete charging) to extend battery life. Stop charging once the battery is fully charged. If the refrigerator won’t be used for an extended period, it’s recommended to fully charge the battery and then turn it off.

How do I connect my Alpicool fridge?

Operate the Alpicool TWW95 fridge using its built-in control panel with an LCD screen or through the Alpicool APP available for mobile phones. To link the APP and the fridge, download the Alpicool APP from the App Store or Google Play, enable Bluetooth, search for the product, select the fridge, and the 'AP' letter will appear on the fridge's display panel. Press the setting button to connect the mobile phone and fridge. Each Alpicool fridge includes a user manual detailing the connection process.

What should I do before unpacking the fridge and immediately after?

Before unpacking, inspect the packaging material and the Alpicool fridge for any signs of damage. If any damage is observed, take photos and send them to info@energian.co.uk. This will facilitate the compensation process.

After checking for damage, remove the fridge from its packaging and leave it for at least 12 hours to let it reach room temperature to avoid potential compressor issues. After this time, you can test the Alpicool fridge.

What should I do if the fridge doesn’t turn on or has defects?

Contact Energian Customer Services promptly to seek assistance or arrange a replacement if necessary.

How long will it take for the fridge to cool down to -18°C?

The cooling time depends on the ambient temperature and the fridge's load. A completely empty fridge can reach -18°C in about 1 hour, whereas a fully loaded fridge may take approximately 2-4 hours, depending on the ambient temperature.

After pressing the ON/OFF button, the screen did not display anything. Is the fridge defective?

Hold the ON/OFF button for a few seconds, and it will activate the fridge.

I received an E1 error code, and the fridge isn't working. What’s happened?

The E1 error code indicates that low voltage protection is activated due to the input voltage being lower than the default value. Follow the instructions in the user manual to lower the protection level, allowing the fridge to turn on.

Why does the temperature fluctuate?

The compressor stops working once the inside temperature reaches the set value. It restarts when the temperature rises by about 3°C. To maintain the optimum temperature for storing products, set the temperature 3°C lower than the ideal freezing or fridge temperature.
