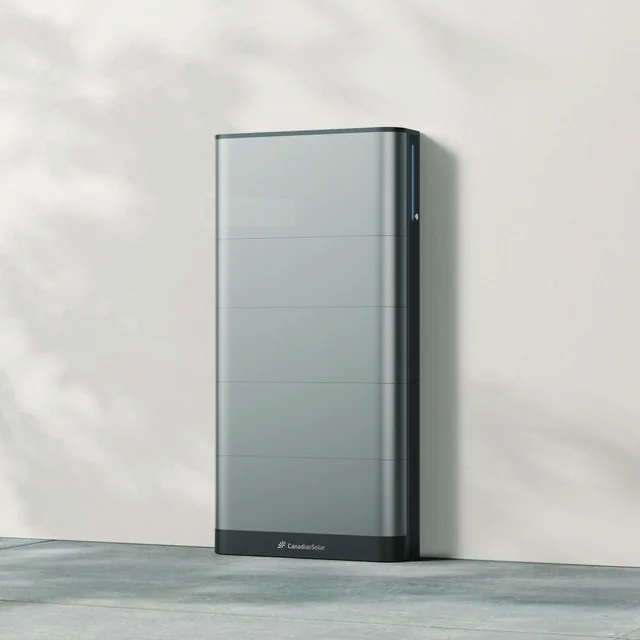

All in One Canadian Solar EP CUBE Hybrid Energy Storage System with 7.6kW Inverter, 6.6-19.9kWh LFP Battery, and (optionally) 10.1kW Solar Panels

• EP CUBE 7.6kW 1PH HYBRID INVERTER is the combination of a solar charge controller and a battery inverter into a single piece of equipment that can intelligently manage power from your solar panels, battery, and the grid at the same time. The Canadian Solar Hybrid Inverter is a good choice for On-Grid / Off-Grid integrated storage solutions.

• EP CUBE HYBRID INVERTER provides 7.6kW in on-grid and back-up modes to support essentials, as well as 24-hour fully intelligent energy management and real-time PV system status monitoring.

• EP CUBE HYBRID ENERGY MANAGEMENT SYSTEM (EMS) Switches to the battery in less than 30ms if the grid is down; Intelligent EMS function, improving battery's reliability; Remote control & upgrade function, providing digital power plant maintenance at your fingertips.

• EP CUBE HYBRID INVERTER WORKING MODES  There are three operating modes of the Hybrid Inverter: Self-Consumption Mode. Backup Mode, and Time-of-Use Mode.
  • SELF CONSUMPTION MODE: During self-consumption mode power generated by PV is utilized to supply power
    to connected loads as a priority. Any surplus power is then used to charge the battery modules. Only once battery modules are fully charged, power is exported to grid. In an instance when power generation by PV is lesser then load
    consumption, battery modules discharge to support loads. Once the battery modules SOC reaches set value for reserve SOC, then loads are supported by grid power..
  • BACKUP MODE: During backup mode power, EP CUBE is charged at the rated power to the SOC value set by the user, and then batteries are in standby. Batteries are charged from PV power, and if excess PV power is not enough than grid power is used for charging. When the battery is fully charged, if the SOC value set by the user is not 100%, the SOC difference still be used to support load. When a power failure or grid outage occurs, EP CUBE seamlessly switch to provide backup power to household
    load.
  • TIME-OF-USE MODE (TOU) During TOU mode user can set off-peak, peak and peak hours. 3 time-slots can be

    set for each category. During Off peak hours, EP CUBE can only be charged from PV as priority power source. If PV power is not in excess then user can allow to charge the EP CUBE with low price electricity from grid during off peak hours in order to ensure full charge before peak hours.

• EP CUBE 3.3kWH 30-43,8VDC LONG LIFE LIFEPO4, EXPANDABLE, HIGH-EFFICIENCY STORAGE BATTERY is covered by a 10 years product warranty (100% Depth of Discharge); Storage capacity is expandable to 19.9kWh (6 modules in stack); Easy plug & play installation.

• (Optional) 22x JA SOLAR 460W MONO MBB PERCIUM HALF-CELL SILVER FRAME MC4 (JAM72S-20-460-MR-MC4-SM) is a solar power source which captures up to 10.12kW DC electricity (2x11 panels strings) to use immediately in the home or a business, store excess energy in the battery or feed into the National Grid. The panel features JA Solar's innovative design with the high panel efficiency and power output of monocrystalline cells, enabling you to get more out of the space available – helping to lower your energy bills and shorten the payback time through increased yield and lower costs.

4-5 WORKING DAYS DELIVERY within the UK (longer to the Highlands, islands and Northern Ireland).

• 1x EP CUBE Hybrid Inverter 220-230VAC, 7.6kW (Grid side/Back-Up);
• 2x - 6x EP CUBE 3.3kWh Battery Module;
• 1x EP Cube AC Switch Box;
• 1x EP Cube Smart Meter;
• 1x EP Cube Wall-mount Kit;
• (Optional) Up to 22x JA SOLAR 460W MONO MBB PERCUIM HALF-CELL SILVER FRAME MC4 Solar Panels, Efficiency = 20.7%.
