Off-Grid Hybrid Wind & Solar Power System with 1600W 48V Wind Turbine Generator, 4x405W Solar Panels, 8.4kWh Battery Bank, 2000W Inverter, and Turbine Mounting Kit

• MISSOURI FREEDOM™ RAPTOR G4 9 BLADES 1600W WIND TURBINE for Off-Grid applications from Missouri Wind and Solar LLC (Seymour, Missouri, USA) is here to help you outfit your house with clean, efficient, and economical wind power unconstrained by the electrical grid. No matter your expertise, this system is a practical solution for your power needs. 1600W Wind Power System is built around the 1600-watt Missouri Freedom™ Raptor G4 9 blades turbine in 48 volts. The turbine features nine carbon fibre blades designed to minimise noise and maximise RPMs. The Freedom permanent magnet generator (PMG) delivers unbeatable efficiency. To monitor and adjust the flow of energy from the turbine to the battery, included Digital All-in-One Charge Controller makes the task simple. The 3-phase brake switch allows you to set your turbine to run, spin, or brake. The charge controller is designed to accept solar panel input in addition to your wind turbine, so expanding your system later on is hassle-free.

• THE RAPTOR G4 WIND TURBINE BLADES are made in the USA from revolutionary carbon fibre composites (used by the aircraft industry). The Raptor G4 blades can last 75 years in the sun! Made to withstand extreme heat and sub-zero temps, the blades are designed for high speed, high efficiency, affordability, and durability. They are rated to withstand 200km/h winds and are designed to operate at high speed in low winds to create maximum power.

• MISSOURI FREEDOM WIND TURBINE COMPONENTS are hot-dipped galvanised with zinc-plated hubs! Will not rust. No need for painting or special coating for up to 50 years under normal conditions. Low wind speed rated wind turbine for home, business, or remote use with the Freedom Permanent Magnet Generator™ (PMG) - 1600 Watts plus potential power!

• 12/3 SJOO 3 PHASE WIND TURBINE CABLE is exactly what you need for a three-phase Freedom permanent magnet alternator of Raptor G4 1600-watt model wind turbine. AC medium output runs to the bridge rectifier installed in the control panel or 3-phase grid tie inverter from wind turbine applications with outputs of 48 volt 4,320 watts. This cable features 99.9% pure stranded copper for maximum conductivity. Fine-stranded for flexibility and superior conductivity, giving you the most power for low voltage power transmission. The premium-grade black rubber jacket provides excellent resistance to abrasion, water, and oil and is highly flexible, even in low temperatures.

• JA SOLAR 405W MONO MBB PERC HALF-CELL ALL BLACK MC4 SOLAR PANELS are reliable, efficient, and cost-effective with an attractive payback period.  Module efficiency up to 20.7 %. Heavy snow load up to 5400Pa and increased wind load up to 2400Pa. Well-designed in a durable black frame, these panels are suitable for domestic, farm, garden office, and similar rooftop installations.  25-year product warranty.

• WIND & SOLAR CONTROL PANEL comes with Dual Freedom II Wind & Solar Digital All in One Charge Controller with LED Meter, a 600 Watt divert load, 3-phase 50 amp brake switch, and a high amp 1000 volt rectifier. In addition, the charge controller has most of the features of our larger controllers but is much more compact and economical. Compatible with lead acid and AGM batteries. Dual microprocessor controlled for stability and accuracy. Isolated Electronics Protection — Almost impossible to accidentally connect wind or solar directly to the circuit board. Plug & Play: Long leads for easy termination to your battery or battery bank. Connect both wind and solar at the same time.

• AVON ADC12-175EV 12V 175Ah (C20) DEEP CYCLE COMBINED AGM GEL BATTERY combines AGM construction with nano silica GEL which provides an improvement in overall performance and cycle life 600 cycles @ 80% DOD / 400 @ 100% DOD which is 1.5 times more than standard AGM batteries. Warranty from 1 to 5 years. The warranty on the battery covers all faults caused by manufacturing workmanship or materials.

• AVON COMBINED AGM GEL BATTERY IS A PREMIUM PRODUCT with 10% up in Energy Density (Patent negative pasting formula), 50% down in Grid Corrosion (Rare-earth patent alloy), and 0% in Acid Stratification (Nano silica gel technology). Highest Capacity vs Storage Time — Three months 90%, Six months 80%, Nine months 60%.

• PHOTONIC UNIVERSE OFF-GRID 2000W 48V PURE SINE WAVE POWER INVERTER can generate 2000W of continuous power and up to 4000W of power at peak times (peak time reserve capacity is useful in case more energy is required to start an appliance than for its continuous running). This inverter comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown. In addition, the inverter has a USB port for powering USB-compatible devices (e.g. mobile phones, tablets, laptops, MP3 players, etc.) and is also supplied with a wireless On/Off remote control (max. 50m radius).
• WIND TURBINE ROOF MOUNT KIT is compatible with all roof types because it's fully adjustable. The system has the advantage of height, which means it will get the most out of the wind blowing over your home. It's typically cheaper to install a roof-mounted turbine than a standalone one.

• 2-3 DAYS DELIVERY within the UK (longer to the Highlands, islands, and Northern Ireland).

• 1x MISSOURI FREEDOM™ RAPTOR G4 9 BLADES 1600W WIND TURBINE - 1 X Carton,
• 2x 12/3 SJOO 3 PHASE WIND TURBINE CABLE 30.5m (100ft) - 1 X Carton,
• 4x JA Solar 405W Mono MBB PERC Half-Cell All Black MC4 Solar Panels - 1 X Double Pallet,
• 1x WIND & SOLAR CONTROL PANEL WITH HYBRID DUAL FREEDOM II WIND & SOLAR DIGITAL All IN ONE CHARGE CONTROLER - 1 Carton,
• 4x AVON ADC12-175EV 12V 175Ah (C20) DEEP CYCLE COMBINED AGM GEL BATTERY - 1 X Pallet,
• 1x PHOTONIC UNIVERSE OFF-GRID 2000W 48V PURE SINE WAVE POWER INVERTER - 1 X Carton,
• 1x WIND TURBINE ROOF MOUNT KIT - 1 X Carton,

• USER MANUALS - 1 Set.

Any questions? Call us at 020 8064 0335 or email info@energian.co.uk.

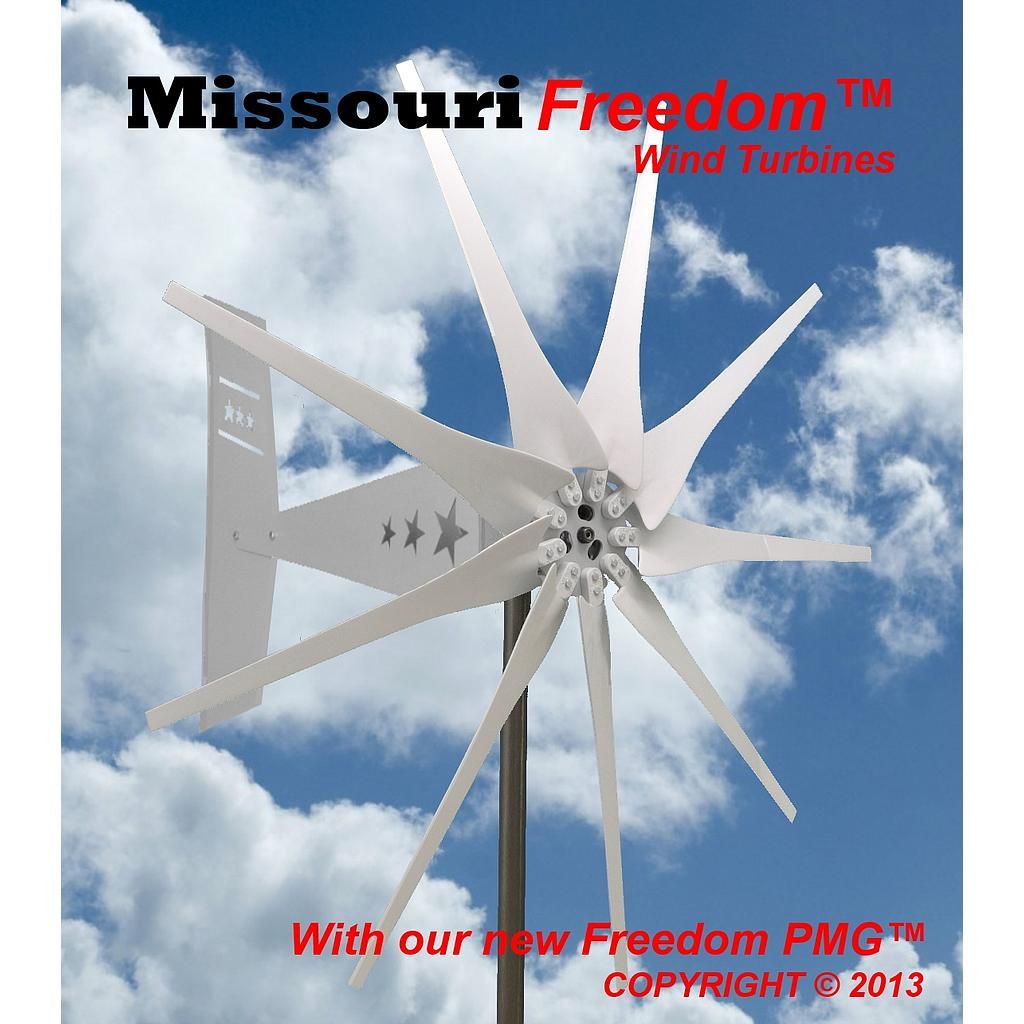

1600W 48VDC WIND TURBINE GENERATOR FOR OFF-GRID APPLICATION

1. WHAT IS THE WIND TURBINE GENERATOR?

MISSOURI FREEDOM™ 1600W 48VDC Wind Turbine is to help you outfit your house with clean, efficient, and economical wind power unconstrained by the electrical grid. No matter your expertise, our generators are a practical solution for your power needs.

1600 Watt 48VDC Missouri Freedom™ Wind Turbine Generator Includes:

• Missouri Freedom 1600 Watt Wind Turbine
• Available in 12 volts, 24 volts, or 48 volts,
• 1600 Watt Freedom PMG for efficient three-phase power generation
• Zinc plated 14 magnet rotor and skewed stator core
• Metal parts are Hot Dipped Galvanised & Zinc Plated to resist rust
• Carbon Fiber Raptor Generation 4, wind turbine blades,
• Digital All-In-One Charge Controller with LED Meter for 3 Phase and DC Systems
• 600 Watt Divert Load
• 3-Phase Brake Switch
• Relay and charge controller with LED volt meter
• Heavy-duty battery cables
• and rectifier for a 3-phase output wind turbine connection
• 100 Feet SJOO Wind Turbine Cable — if more is required for your project, you can add additional footage to the shopping cart.
• 100 Amp Fuse and Fuse Block

2. HOW DOES THE WIND TURBINE GENERATE ELECTRICITY?

A wind turbine uses moving wind air to create electricity. Wind travelling across the blades creates lift — like an aeroplane wing — which drives a generator producing electricity. Electricity generated by the wind turbine is sent to the home (farm, garage, or any other property), where it displaces electricity that would otherwise have been generated by more traditional sources such as coal, oil, nuclear and natural gas and transmitted to you through the grid.

3. ARE THE TURBINE BLADES STRONG?

The Raptor G4 wind turbine blades are made from revolutionary carbon fibre composites (used by the aircraft industry) — The same material used in the F-22 Raptor fighter jet. Designed for high speed, high efficiency, affordability, and durability.

The Raptor G4 blades can last 75 years in the sun! Made to withstand extreme heat and sub-zero temps, the blades are designed for high speed, high efficiency, affordability, and durability. They are rated to withstand 56 m/sec winds and are designed to operate real PMGs (permanent magnet generators) at high speed in low winds to create the maximum power a PMG can put out. The precision, aerodynamically tapered blades feature a 2.7 m/sec start-up speed.

4. WHAT TYPE OF PERMISSION DO I NEED TO INSTALL A WIND TURBINE FOR MY HOME?

Planning permission for wind turbines depends on which region you live in the UK. If you live in England or Scotland, then certain wind turbines are permitted without planning permission, but they require adherence to strict conditions. In England, building-mounted wind systems were relaxed as part of 2011 legislation, but in Scotland, you will still require planning permission for this.

Permitted development for wind turbines in England

It is possible to install a wind turbine as a permitted development, although it needs to fulfil all of the following criteria:

A wind turbine mounted on a building:

• Need to be a detached house and be surrounded by other detached houses in the vicinity
• Must comply with the MCS planning standards
• One turbine is considered permitted development and the property must not have an air source heat pump installed already. Otherwise, you need to ask for planning permission.
• Including the blades, no part of the turbine should protrude more than 3 meters above the highest part of the chimney, and the overall height of the house + wind turbine should not exceed 15m.
• The distance between the ground and the lowest part of the wind turbine needs to exceed 5m
• A minimum of 5m needs to be between your turbine and the boundary of your property.
• The swept area of a building-mounted wind turbine cannot exceed 3.8m2 which means that a turbine rotor diameter does not exceed 2.2m.
• A wind turbine cannot be sited on the roof of a building within the grounds of a listed building.
• If you live in a conservation area/world heritage site, you are not allowed to position the turbine on a wall that would make it visible from a highway.
• The wind turbine must be removed as soon as practically possible when no longer needed for Microgeneration
• Be sited as far as practically possible to limit the impact on amenities of the local area.
• The installation must not be sited on safeguarded land.

A wind turbine installed as a stand-alone installation:

Can also be considered a permitted development if the following criteria are adhered to:

• The wind turbine must adhere to the MCS planning standards
• The installation must not be sited on safeguarded land.
• One turbine is considered permitted development and the property must not have an Air Source Heat Pump installed already. Otherwise, you need to ask for planning permission.
• The highest part of the wind turbine blade must not exceed 11.1 meters
• The distance between the ground and the lowest part of the wind turbine needs to exceed 5m
• The turbine’s height + 10% is the distance that the wind turbine needs to be from the boundary of your property.
• The swept area of the wind turbine cannot exceed 3.8m which means that a turbine rotor diameter does not exceed 2.2m.
• If you live in a conservation area/world heritage site, the closest part of the wind turbine needs to be further away from any highways than the closest part of the house.
• Permitted development rights are not applicable for an installation on a listed building or on a building in a conservation area/world heritage site.
• The blades cannot be coated in a reflective material.
• When no longer needed for Microgeneration, the wind turbines are removed as soon as practically possible.

Permitted development of wind turbines for Scotland

In Scotland, a building-mounted development requires planning permission, but on the other hand, a standalone development doesn’t, unless it contravenes the following points:

• It is not the only wind turbine within this property
• It is situated less than 100metres from your next-door neighbour
• It sits on a world heritage site; is on scientific research land; is considerably near a listed building or is near land for archaeological purposes.

You also need to make sure that the developer who is building the wind turbine speaks to the local authority and gets clearance for the size and type of wind turbine being installed.

Permitted development of wind turbines for Wales

Permitted development rights do not apply to wind turbines mounted on a dwelling house or building within the curtilage of the dwelling house. It will be necessary to make a planning application to your local planning authority if you wish to install a building-mounted wind turbine.

The installation, alteration, or replacement of a stand-alone (not building-mounted) wind turbine within the boundaries of a dwelling house can be considered to be permitted development, not needing an application for planning permission, provided ALL the limits and conditions listed below are met.

Limits to be met:

• Development is permitted only if the stand-alone wind turbine installation complies with the Microgeneration Certification Scheme Planning Standards or equivalent standards.
• The installation must not be sited on safeguarded land.
• Only the first installation of any wind turbine would be permitted development, and only if there is no existing air source heat pump at the property. Additional wind turbines or air source heat pumps at the same property require an application for planning permission.
• The highest part of the stand-alone wind turbine must not exceed 11.1 meters.
• The distance between the ground level and the lowest part of any wind turbine blade must not be less than five meters.
• An installation is not permitted if any part of the stand-alone wind turbine (including blades) is in a position that is less than a distance equivalent to the overall height of the turbine (including blades) plus 10% of its height when measured from any point along the property boundary.
• The swept area of any stand-alone wind turbine blade must be no more than 9.6 square meters which means that a turbine rotor diameter does not exceed 3.5m.
• In the case of land within a Conservation Area, the stand-alone wind turbine would be installed so that it is visible from a highway that bounds the curtilage of the dwelling-house.
• Permitted development rights do not apply to a turbine within the curtilage of a Listed Building or within an Area of Outstanding Natural Beauty, a World Heritage Site, or a site of special scientific interest.

In addition, the following conditions must also be met. The wind turbine must:

• Use non-reflective materials on blades
• Be removed as soon as reasonably practicable when no longer needed for microgeneration
• Be sited, so far as is practicable, to minimise its effect on the amenity of the area.

You may wish to discuss with the local planning authority for your area whether all of these limits and conditions will be met. In addition, your Local Planning Authority may have Article 4 Directions in place which remove permitted development rights in certain areas. It is therefore the responsibility of the landowner to confirm that permitted development rights do exist and that conditions can be met.

5. WHY DO THE TURBINES NOT SPIN AT TIMES?

The most common reason that turbines stop spinning is because the wind is not blowing fast enough. The RAPTOR G4 wind turbine needs a sustained wind speed of 6 MPH (2.7 m/sec) or higher to operate.

HOW MUCH ELECTRICITY DOES THE WIND & SOLAR COMBINATION PRODUCE PER YEAR

1. HOW MUCH ELECTRICITY DOES THE WIND TURBINE PRODUCE PER YEAR

The three main factors that influence wind turbine power output are mean wind speed, air density, and blade radius. Wind speed largely determines the amount of electricity generated by a turbine. Higher wind speeds generate more power because stronger winds allow the blades to rotate faster. Faster rotation translates to more mechanical power and more electrical power from the generator. You can find out the mean monthly wind speed in the UK for the period 2002-2021 if you download an Excel spreadsheet from the government site

https://assets.publishing.service.gov.uk/government/uploads/system/uploads/attachment_data/file/1112377/ET_7.2_OCT_22.xlsx

Using these mean wind speeds and the turbine 24V/48V power curve below we can estimate how much electricity the wind turbine produces per month.

The results are shown in the table below.

2. HOW MUCH ELECTRICITY DO 4 X 405W SOLAR PANELS PRODUCE PER YEAR?

According to the Centre of Alternative Technology*, "In the UK you can expect one kilowatt of panels to generate between 800 and 1000 units (kilowatt-hours, kWh) of electricity per year. Where you live will be a factor – for example, Cornwall receives 30% more solar energy than northern Scotland". Proportionally,  4 X 405W SOLAR PANELS generate between 1,300 and 1,600 kWh of electricity per year.

*  https://cat.org.uk/info-resources/free-information-service/energy/solar-photovoltaic/

3. WHAT SHARE OF ELECTRICITY CONSUMED BY A TYPICAL HOME CAN BE SUBSTITUTED BY THE HYBRID WIND & SOLAR POWER SYSTEM?

Typical electricity usage for a two-bedroom home sits between 2,500 and 3,000 kWh per year, 2800 kWh on average. So, if the 1600W wind turbine generates approx. 1420 kWh per year, and 4 x 405W solar panels generate between 1,300 and 1,600 kWh per year, then the WIND & SOLAR POWER SYSTEM is able to generate from 97% to 108% of a typical two-bedroom home usage per year. For a three-bedroom home which has 3,500kWh annual electricity usage on average, the WIND & SOLAR POWER SYSTEM is able to generate from 77% to 86% of annual electricity usage.

DIGITAL ALL-IN-ONE CHARGE CONTROLLER WITH LED BATTERY VOLTAGE METER

1. WHAT DOES THE CHARGE CONTROLLER?

The Charge Controller is a Hybrid Wind and Solar Diversion Charge Controller to charge a 48V battery bank from the Wind Turbine only or from a combination of the Wind Turbine and Solar Panels array up to 2400W.

2. IS THE CHARGE CONTROLLER OF THE DIVERSION TYPE?

YES. The Charge Controller monitors the battery bank preventing it from overcharging by adding a dump load to the battery electronically. They require an external load, typically a resistive load bank, which dissipates the excess energy in the form of heat. Optional heating coils are available that can be installed in hot water heaters to dump the excess energy into the tank thereby heating the water. The Charge Controller guarantees to keep your wind turbine under a load and slowed down. The solar panels, if they have been connected, will disconnect.  If you need to increase the wattage of the dump load, simply buy another dump load and stack it. Make sure it matches the voltage of the divert load on the Charge Controller.

3. CAN I USE THE CHARGE CONTROLLER WITHOUT A BATTERY BANK TO DRIVE DC LOADS?

WE RECOMMEND YOU DO NOT CHANGE THE CONTROLLER’S SETTINGS UNLESS YOU ABSOLUTELY NEED TO. READ AND UNDERSTAND ALL INSTRUCTIONS INCLUDED WITH YOUR EQUIPMENT. THE WARRANTY WILL BE VOID IF THE SETTINGS ARE CHANGED UNNECESSARILY.

5. WHAT BATTERIES CAN BE CHARGED BY THE CHARGE CONTROLLER?

The Charge Controller is compatible with Lead Acid and Deep Charge AGM batteries - cannot be used with Lithium batteries. Battery Status LED lets you know your battery's actual voltage!

THE BATTERY BANK

WARNING: Never mix and match batteries in the battery bank. All batteries must be the same type, size, and general age. An old, mismatched, or shorted battery in a bank causes a lot of problems. NOTE: New batteries act like old batteries and will need a few cycles before they operate correctly.

1. WHAT IS THE BATTERY BANK CAPACITY OF THE WIND POWER SYSTEM?

Wind Power System uses four well-known, dependable AVON ADC12-EV175 12V deep cycle combined AGM GEL batteries with a total capacity of 6,000Wh (4x 175Ah (C20) @12V in serial). AVON deep cycle batteries combine AGM construction with nano silica gel which provides an improvement in overall performance. Maintenance Free VRLA battery, no need to add water or acid during application. Patented structure design with high utilisation of active material, maximum improve the utilisation rate of active material and the utilisation ratio of battery internal space, 5%-10% higher capacity than similar products in the market. High performance for large current discharge.

2. WHAT IS THE CYCLE LIFE OF THE BATTERY?

AVON ADC12-EV175  battery is designed for >600 cycles @80% DoD (Depth of Discharge). This is 1.5 -2  times more than other standard AGM batteries.

3. HOW CAN I GET THE LONGEST LIFESPAN FROM THE BATTERY?

1. Keep it within 23°C — 27°C and away from water and heat.
2. For safety reasons, do not store the AVON ADC12 batteries above 40°C or below −15°C for extended periods.
3. All AGM batteries have to be fully charged to 100% in order to maintain their capacity. When you partially charge AGM batteries, they with time lose their capability to charge to full capacity. If you constantly charge your AGM battery to only 60% for instance, it may eventually fail to charge past 60%. This, in turn, reduces the lifespan of the battery. Lead acid batteries can get damaged if you charge them in temperatures below 0° and above 40°. AGM batteries use lead acid, therefore, you should avoid charging them when it is too cold or too hot. Preferably, charge the batteries when the temperature range is between 0° to 40° Celsius to increase their lifespan.
4. AVON ADC12 batteries can be discharged up to 100% of their capacity. However, to optimise the performance of your AVON battery, to achieve a higher life cycle, we recommend limiting the discharge to not more than 80%. The general principle is that the less the battery is discharged before recharging, the greater number of charge-discharge cycles it will have in its lifetime. For example, a battery that is regularly discharged by 80% (only 20% charge remaining) will have a much shorter lifespan compared to a battery that is discharged by only 30% (with 70% charge remaining). Completely draining a battery might permanently reduce the total capacity. Some batteries (such as Deep Cycle) can tolerate this better, but it is still not healthy for them. Our advice is not to discharge your battery excessively and to recharge it as soon as possible, not leaving it discharged for a long time.

4. WHAT ARE THE BATTERY CARE AND STORAGE INSTRUCTIONS?

1. Recommended storage temperature: from -15°C to +40°C. Self discharge vs Time @ various storage temperature: Remaining capacity 50% - 4.5 months @ 40°C, 9 months @ 30°C, 15 months @ 20°C, 23 months @ 10°C.
2. AGM batteries should be stored in a cool (above freezing), dry location unpackaged or in the original packaging. Avoid placing the batteries directly on concrete floors. When an AGM battery is stored for extended periods, a refresher or boost charge should be performed to avoid excessive discharge and possible freezing in very cold temperatures. A refresher charge every 3-4 months is ideal.

5. WHEN TO CHARGE MY AGM BATTERY?

Most AGM batteries can be safely charged at any time, as long as they are not already fully charged. However, it is always a good idea to consult your battery’s owner’s manual to make sure you’re using the correct charging method. It is also best to charge your dead AGM battery once a month during periods of disuse.

6. WHAT TO DO IF THE LOSS OF POWER IN THE BATTERY BANK IS TOO QUICK?
   Check if there are any high-power electrical appliances connected. 1000W Wind Power System's battery capacity is 8,4000Wh. Normally, if the power of a connected electrical appliance is ~2000W and the battery is discharged from 100% to 20%, the Wind Power System's battery will run out in about 3 hours.

DC TO AC INVERTER

1. WHAT DOES A POWER INVERTER DO?

A power inverter is a device that converts battery power into mains power, i.e. it transforms 48V direct current (DC) into 230V alternating current (AC). 230V AC is the power supplied to our houses by utility companies, and this is the power required by most normal household appliances such as lights, TVs, fridges, etc. There are two main types of inverters:

• Off-grid inverters, which work as a standalone system and require batteries (typically used in caravans, boats, or locations without access to mains power)
• On-grid or grid tie inverters, which require mains power to work (typically used in household solar systems and take input directly from solar panels)

In the Wind Power System a  Photonic Universe 2000W off-grid inverter only is used - i.e. the inverter which can be used to build a home  230V "grid".

2. WHAT TYPE OF INVERTER IS USED IN WIND POWER SYSTEMS?

The type of power inverter which is used in the Wind Power System is a Pure sine wave inverter rated 2000W. A pure sine wave inverter provides an output of up to 2000W which follows a sine wave harmonically. This is similar to utility-supplied grid power. This inverter switches polarity ("+" and "-") between power cables smoothly; gradually increasing or reducing the voltage as required (in case you were wondering why inverters have to switch polarity: this is the essence of alternating current; polarity changes occur approximately 50 times per second).

3. WHAT CAN I USE A 2000W POWER INVERTER FOR?

The 2000W inverter is chosen based on the typical power consumption of standard household appliances shown in the table below (Source: https://www.photonicuniverse.com/en/how-to-choose/ac-inverter/).

*Appliances marked with a star are likely to have a starting power consumption several times greater than their normal working power (typically this is caused by electric motors). For example, even though electric lawnmowers have a normal working power of 1000W, their starting power is over 4000W. This means that an inverter with a continuous power of 2000W is not suitable, because its peak power is limited to only 4000W.

**These appliances do not have an electric motor inside but still have a variable power consumption with power spikes. Therefore they require a larger inverter than would be needed for other appliances with a similar nominal power rating.

Please also note: this table is provided for general guidance only. The actual power consumption of your appliances, as well as starting power requirements, may vary considerably. In all cases, you will need to check the specifications of your equipment to find their continuous and starting power requirements.

If more than one device is connected to the inverter, the total power consumption should be the sum of all appliances used. This will determine the total inverter power required.

4. WHY 48V BATTERY BANK AND 48V DC TO 230V AC INVERTER IS USED?

This setup will provide some important benefits:

• The input current for the inverter will be four/two times smaller for 48V than for 12V or 24V, making the inverter and the entire system safer and more reliable;
• The cables between your battery and the inverter do not have to be as thick as those used for a 12V or 24V battery bank and inverter.

5. WHAT PROTECTION AND SAFETY FEATURES DOES HAVE THE 2000W INVERTER?

This product comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown.

• Low battery shut down: 40.0V +/- 2.0V DC
• Low battery alarm: 42.0V +/- 2.0V DC
• High voltage shut down: 62.0V +/- 2.0V DC
• Thermal shutdown: 60 +/-5°C

6. WHAT OUTPUT SOCKETS HAVE THE 1000W INVERTER?

2 X 230V AC Sockets. An adaptor may be used for more sockets, provided that the total power consumption of all appliances connected to this inverter is within 1000W.

1 X USB-A 2A Socket.

7. DOES THE 1000W POWER INVERTER HAVE WIRELESS CONTROL?

YES. The 2000W inverter is supplied with a wireless On/Off remote control (max. 50m radius).

8. WHAT TO DO IF 2000W INVERTER CANNOT POWER ELECTRICAL APPLIANCES?

1. First, please check whether the output power of the 2000W inverter can meet the charging power requirements of your appliances.
2. In case of a warning red light, take action as described in the User Manual.

9. WHAT TO DO IF THE USAGE TIME OF AN ELECTRICAL APPLIANCE IS TOO SHORT?

1. Replace the USB cable to check whether the cable is faulty.
2. If there is no output from the USB port after checking the above methods, provide a video explaining the fault and contact Energian Customer Service service.

WIND TURBINE TOWERS

1. WHAT IS THE FUNCTION OF THE WIND TURBINE TOWER?

Made from tubular steel, the tower supports the body of the turbine. Towers usually come in three sections and are assembled on-site. Because wind speed increases with height, taller towers enable turbines to capture more energy and generate more electricity. The highest part of the stand-alone wind turbine must not exceed 11.1m in England and Wales. Including the blades, no part of the turbine should protrude more than 3 meters above the highest part of the chimney, and the overall height of the house + wind turbine should not exceed 15m in England.

2.  WHERE CAN THE WIND TURBINE TOWER BE INSTALLED?

There are two ways to install a wind turbine - on the roof of a building or on the ground. For installation of the wind turbine on the roof of a building, we offer a Missoury adjustable wind turbine roof mount.
