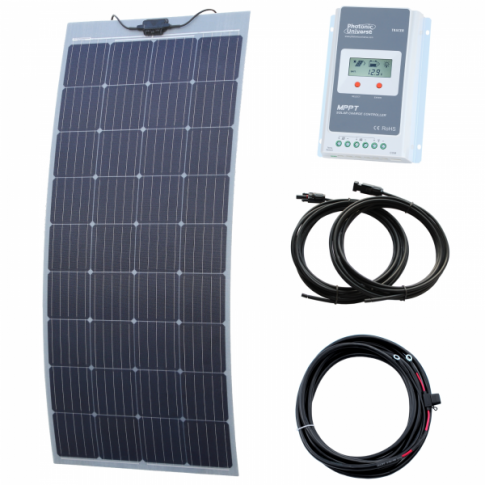

180W semi-flexible solar charging kit with Austrian textured fibreglass solar panel (with self-adhesive backing)

180W 12V solar charging kit which includes a 180W textured flexible solar panel with self-adhesive, 20A MPPT solar charge controller with inbuilt LCD display, 5m solar cables with MC4 connectors and a 5m 4.0mm dual core battery cable with fuse holder, 15A fuse and 8mm ring terminals.

The solar kit includes:

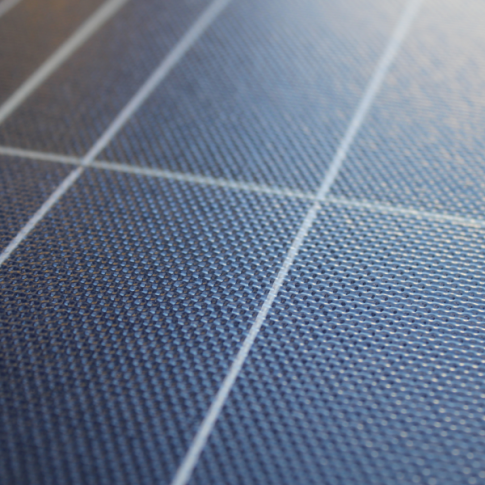

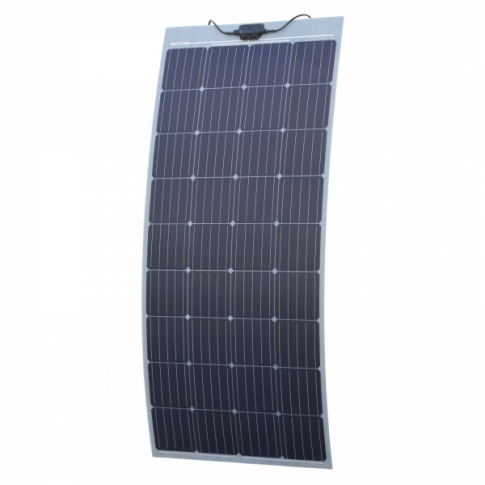

- 180W semi-flexible, textured solar panel made of plastic reinforced with glass fibre, with self-adhesive backing (IEC certified)

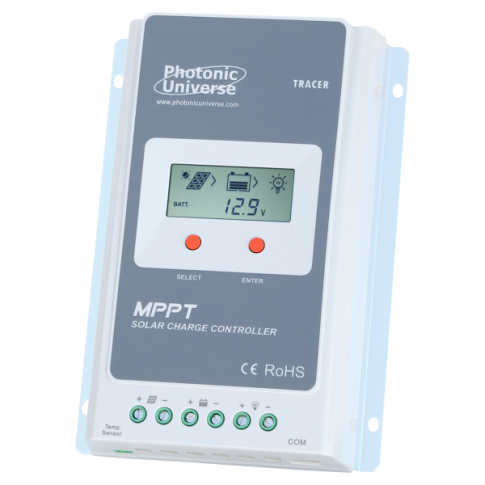

- 20A high efficiency MPPT solar charge controller with inbuilt LCD display

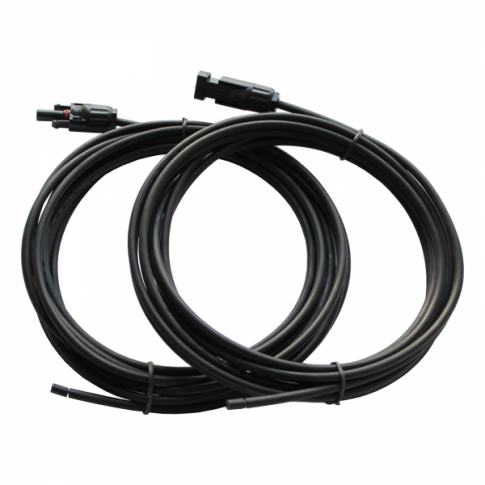

- Pair of 5m 4.0mm² single core extension cables with MC4 connectors

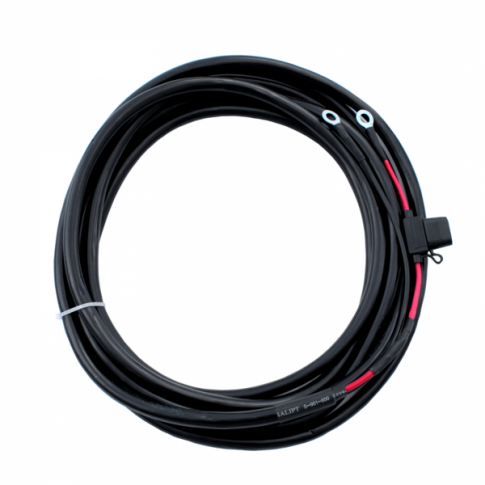

- 5m 4.0mm² dual-core battery cable fitted with a fuse holder, 15A fuse and 8mm ring terminals

Solar panel specifications:

• Peak power: 180W
• Maximum power voltage: 20.6V
• Maximum power current: 9A
• Open circuit voltage: 24.8V
• Short circuit current: 9.4A
• Dimensions: 1595 x 699 x 2 mm
• Weight: 3.65 kg

Controller specifications:

• The most advanced MPPT technology to ensure high efficiency (> 95%) of your solar system
• Fully automated operation
• 3 pairs of terminals (solar panel, battery, load) for wires up to 16mm²
• Maximum solar panel voltage: 100V
• Maximum solar panel power: 260W (12V)
• Temperature sensor for automatic compensation (-3mV/°C/2V)
• Comprehensive electronic protection features
• Communication port: RS485/RJ45 interface
• Current limiting function (20A)
• Self-consumption: ≤12mA (12V)
• Working temperature: -25°C to +50°C
• Size: 22 x 15.4 x 5.2 cm
• Mounting dimension: 17 x 14.5 cm
• Weight: 0.94kg
• Multiple mounting holes (5mm diameter) for ease of installation
