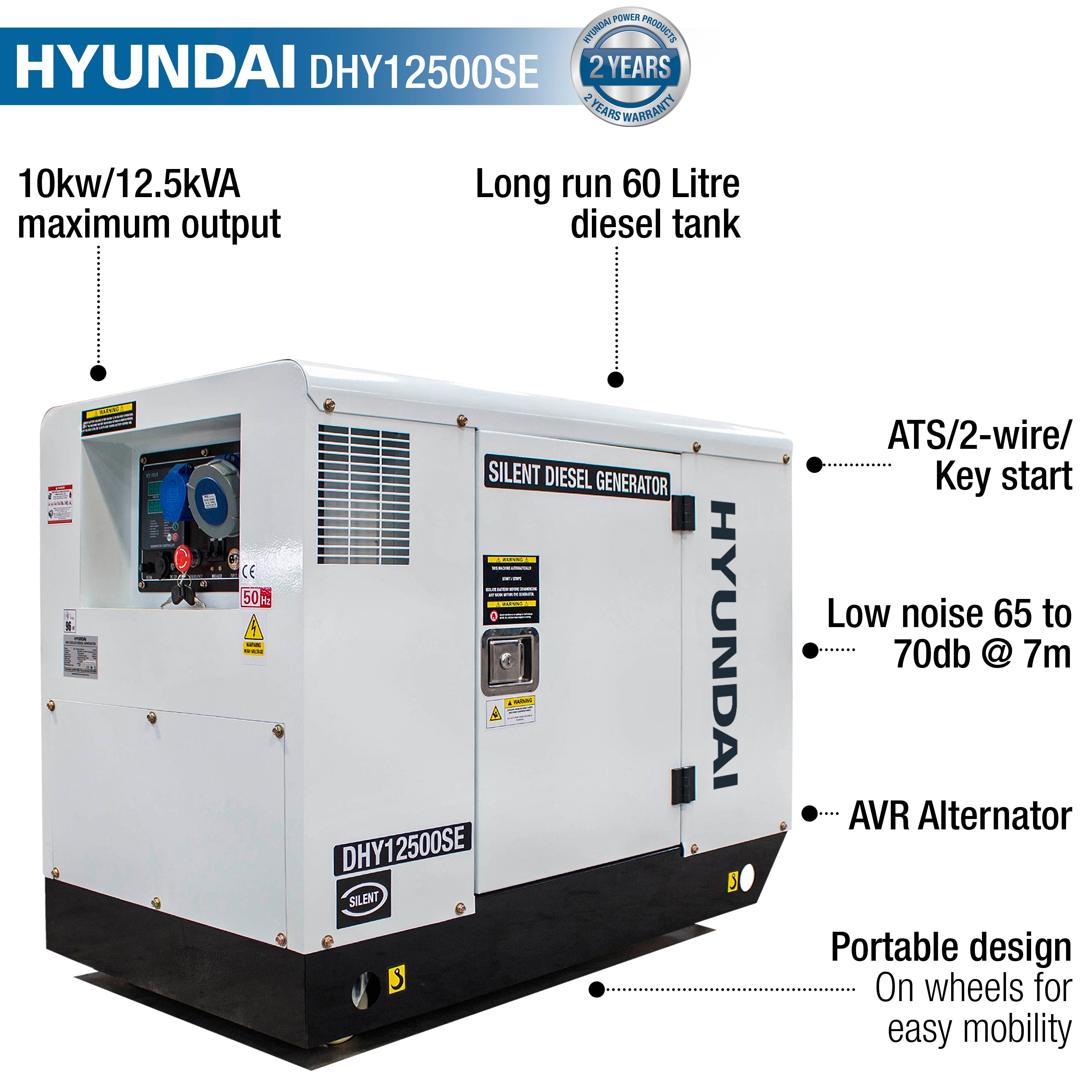

Key Features
- 10kW / 12.5kVA maximum output
- Long run 60L base-mounted fuel tank
- ATS / 2-wire / Key start options
- Low noise operation: 65 to 70dB @ 7m
- AVR Alternator for sensitive electronics
- Mounted on wheels for portability
- Suitable for home or business backup power
- 1 Year / 1,000 Hour Hyundai Warranty
Description

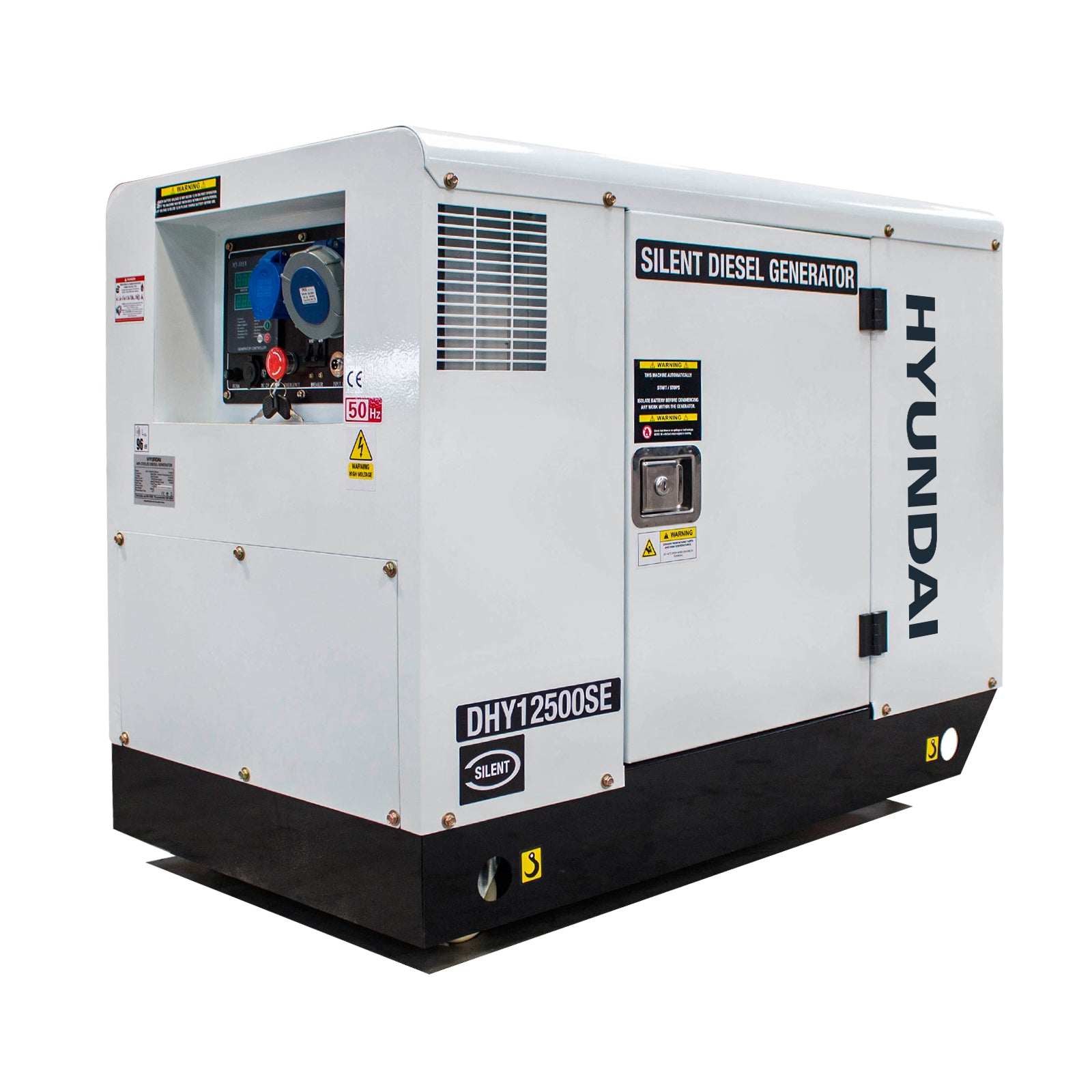

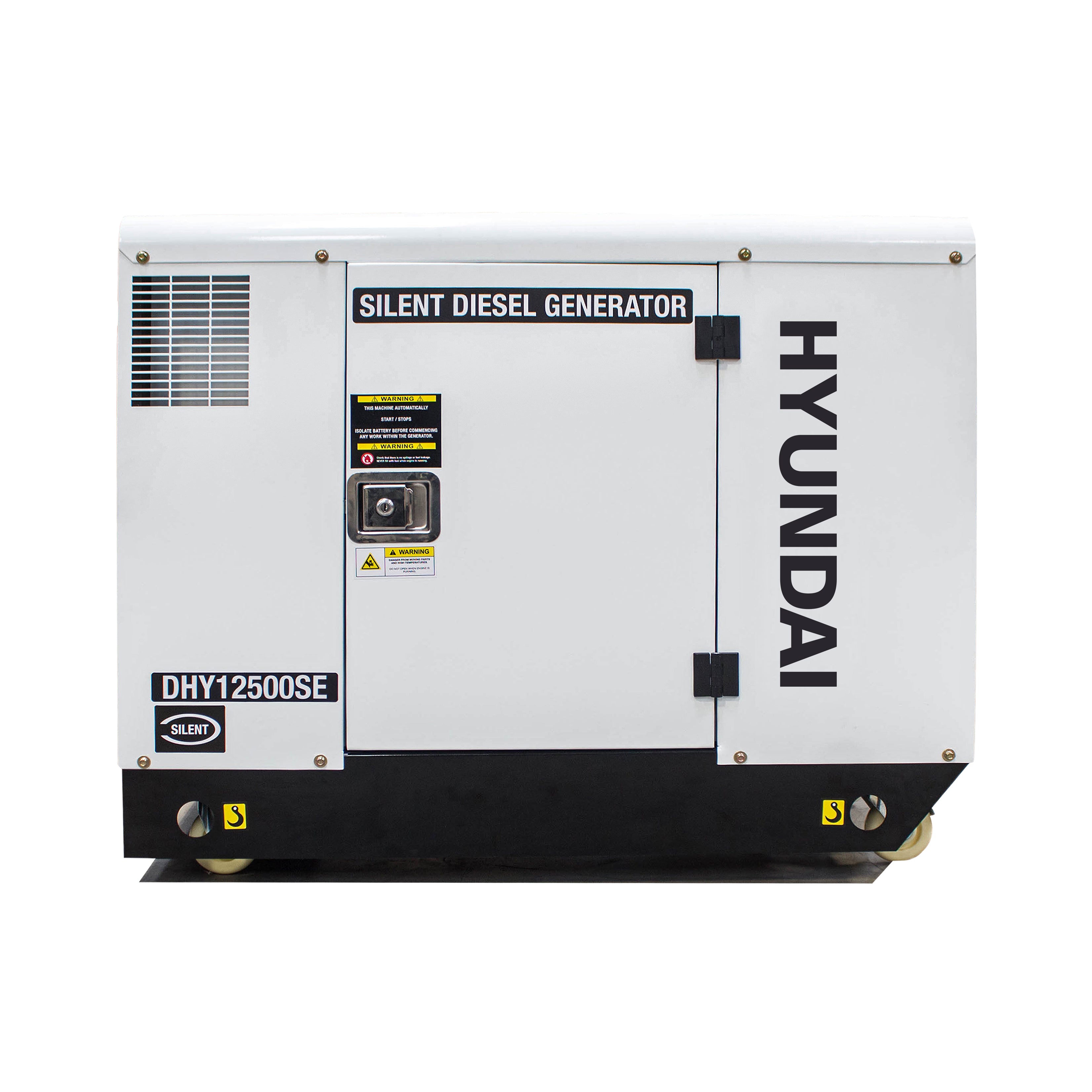

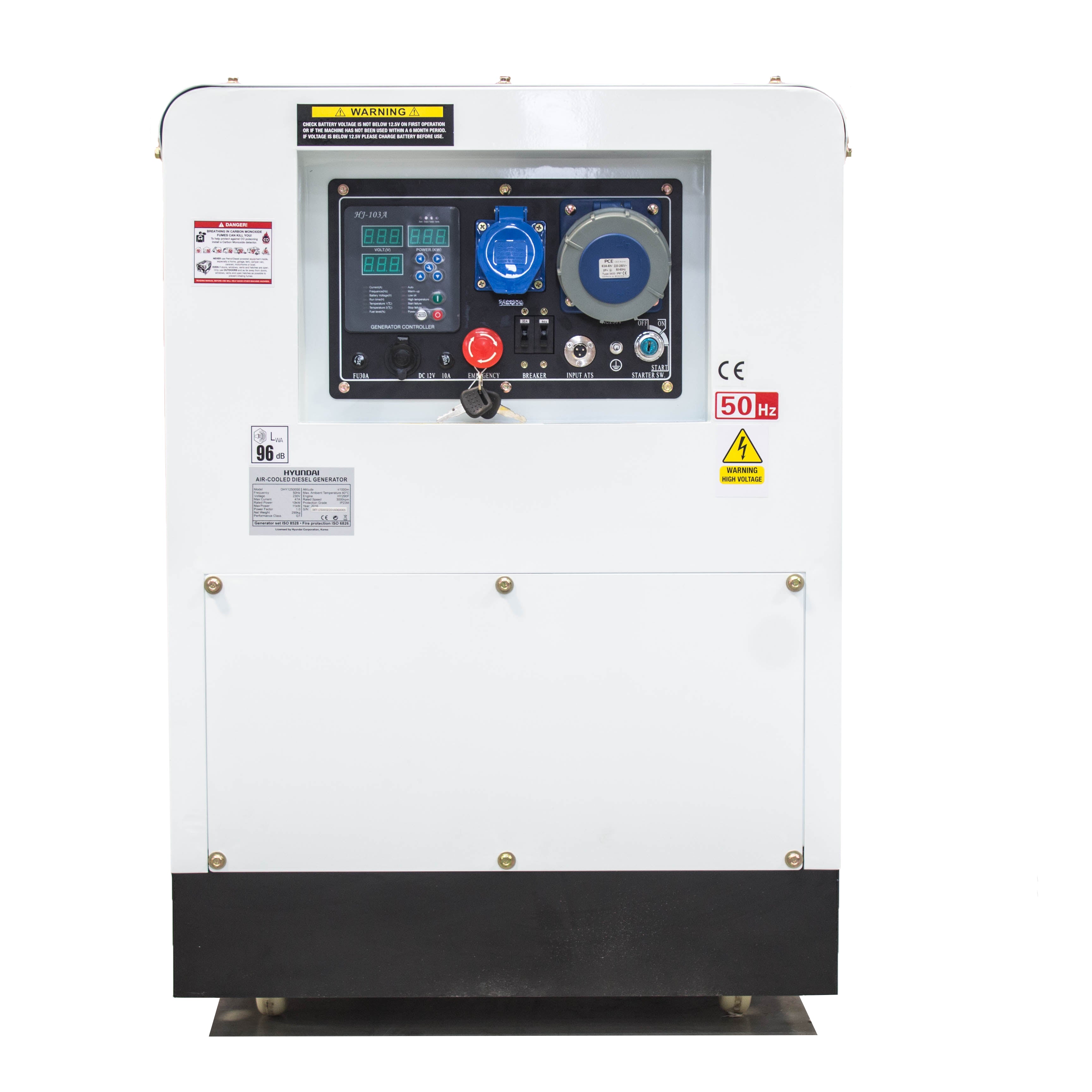

The Hyundai DHY12500SE is a diesel single-phase backup generator ideal for homes, workshops, and businesses. With a maximum output of 12.5kVA / 10kW, it ensures your essential devices like Wi-Fi, heating and refrigeration stay operational during power cuts.

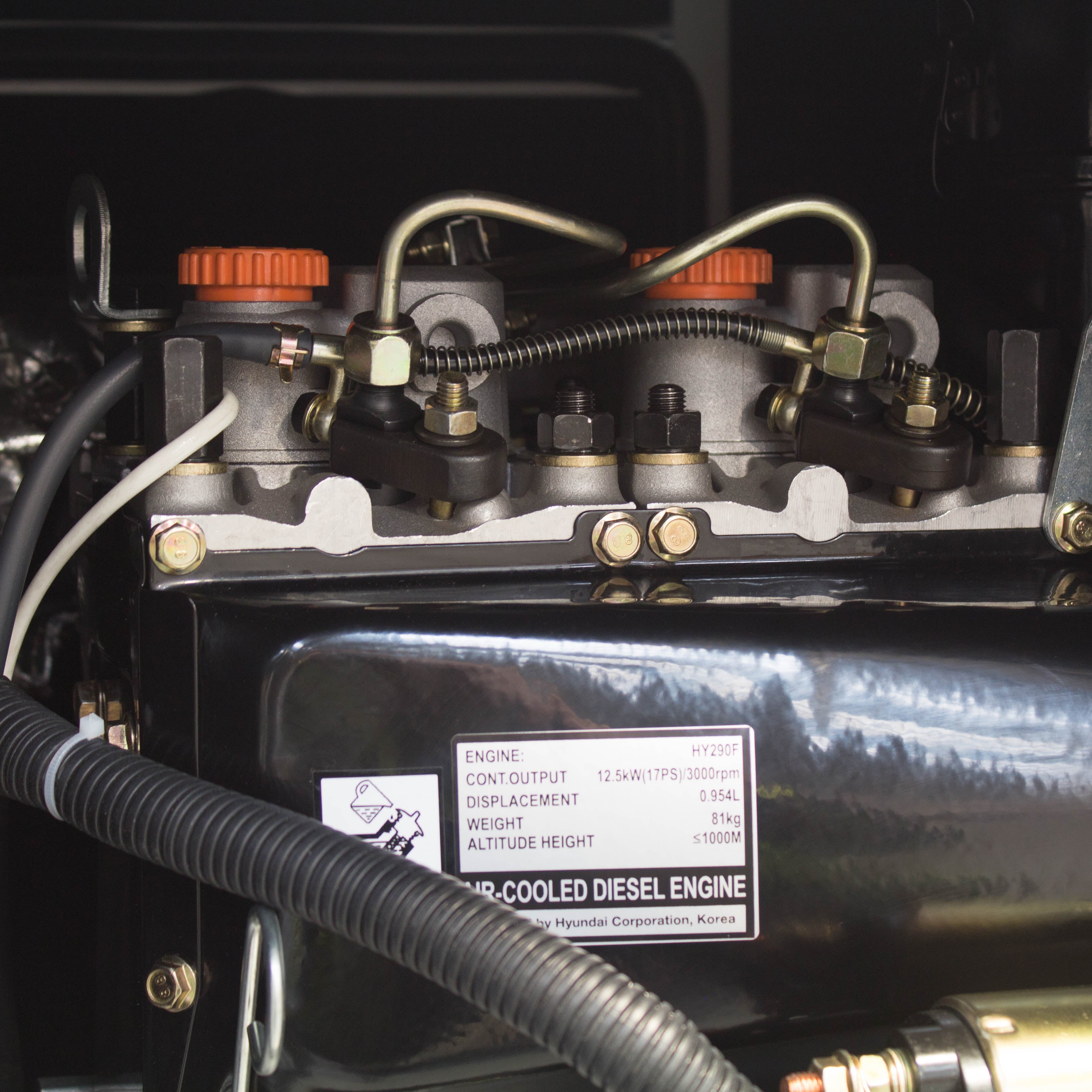

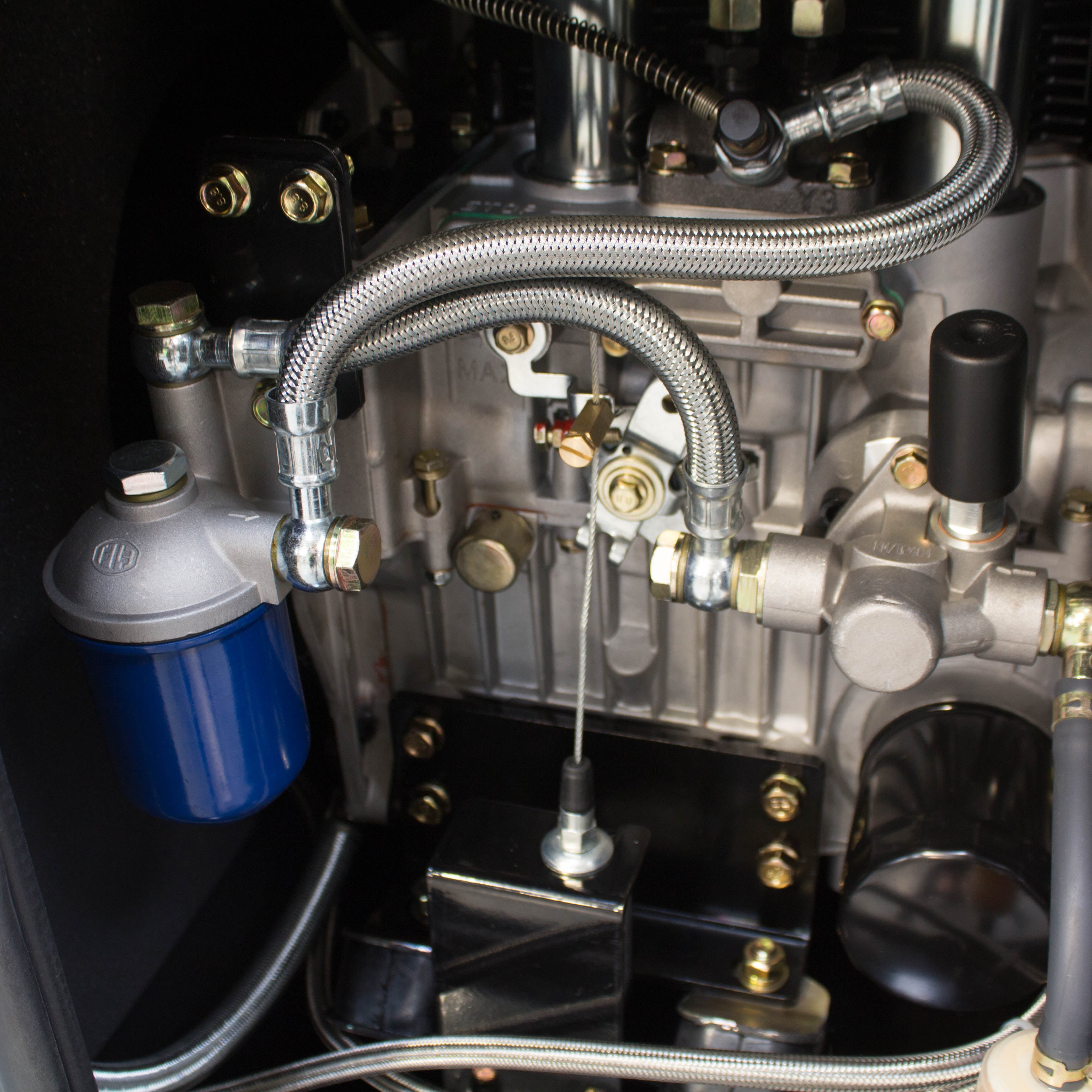

Featuring a robust twin-cylinder air-cooled engine, the DHY12500SE is equipped with a long-run 60L fuel tank for up to 18 hours of runtime under light load. Its AVR alternator protects sensitive electronics like laptops, televisions, and servers from voltage fluctuations.

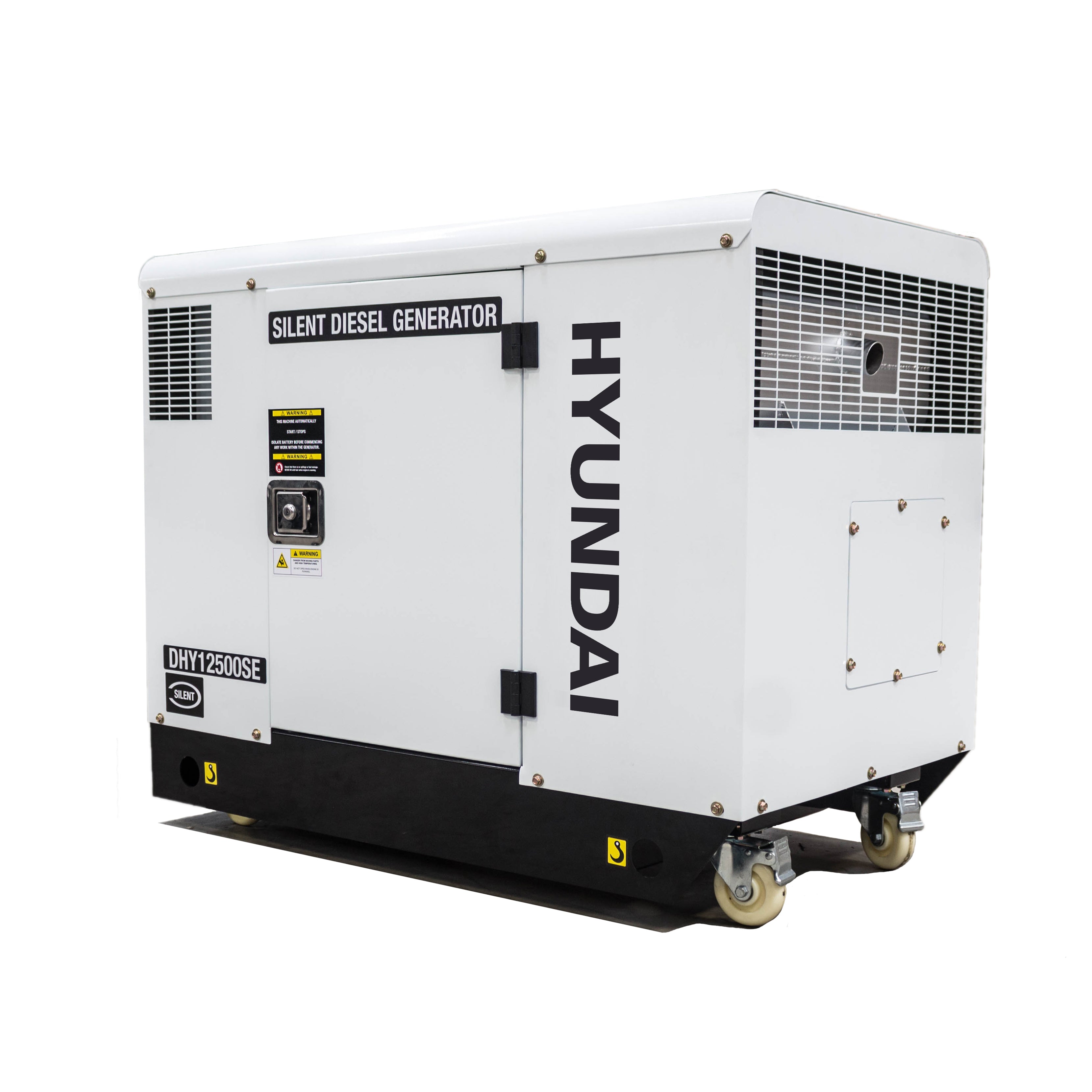

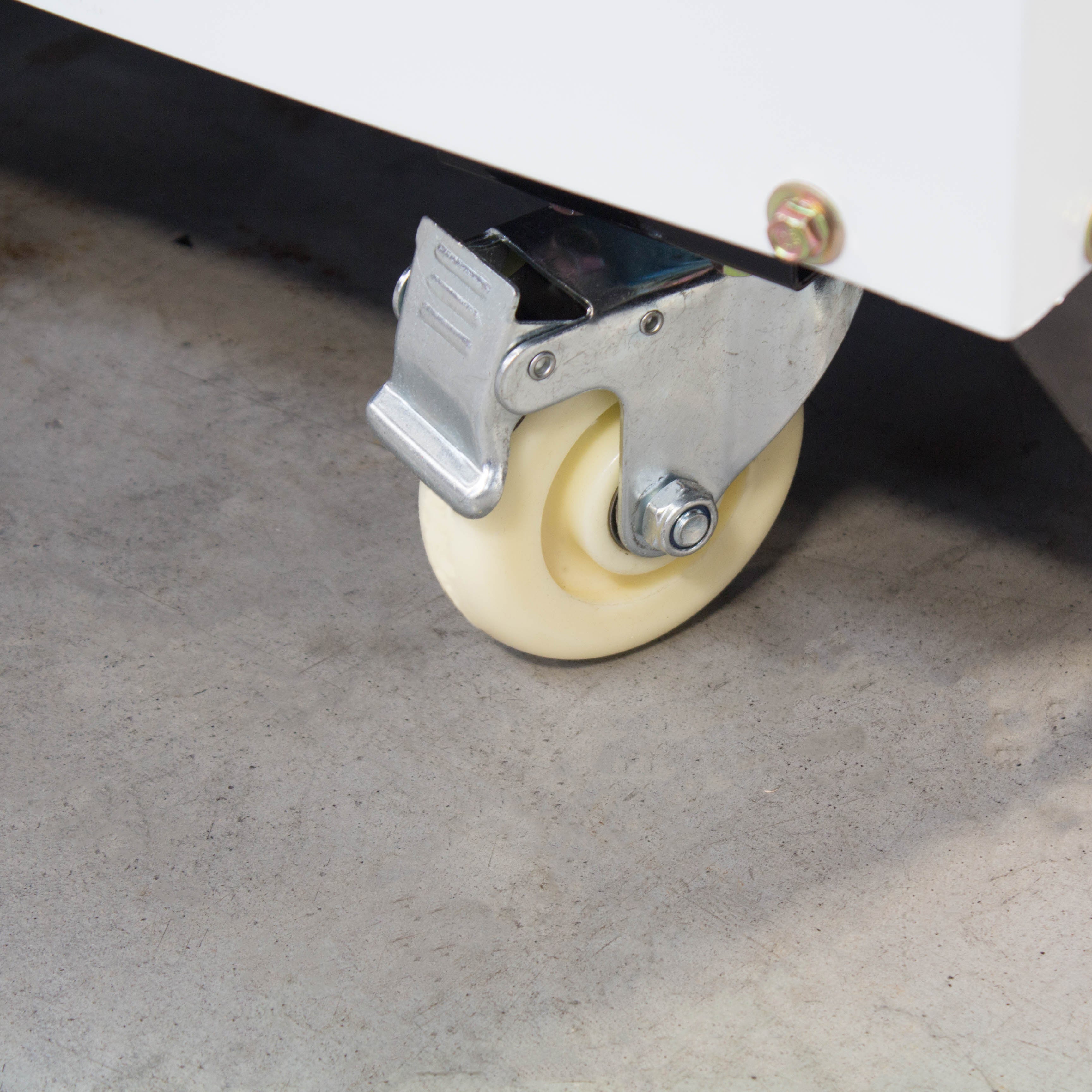

Using a sound-attenuating enclosure, this generator emits just 65-70dB of noise at a distance of 7 meters, ensuring minimal disturbance during operation. With 4 wheels (2 steering with brakes and 2 fixed), it can be easily transported wherever needed.

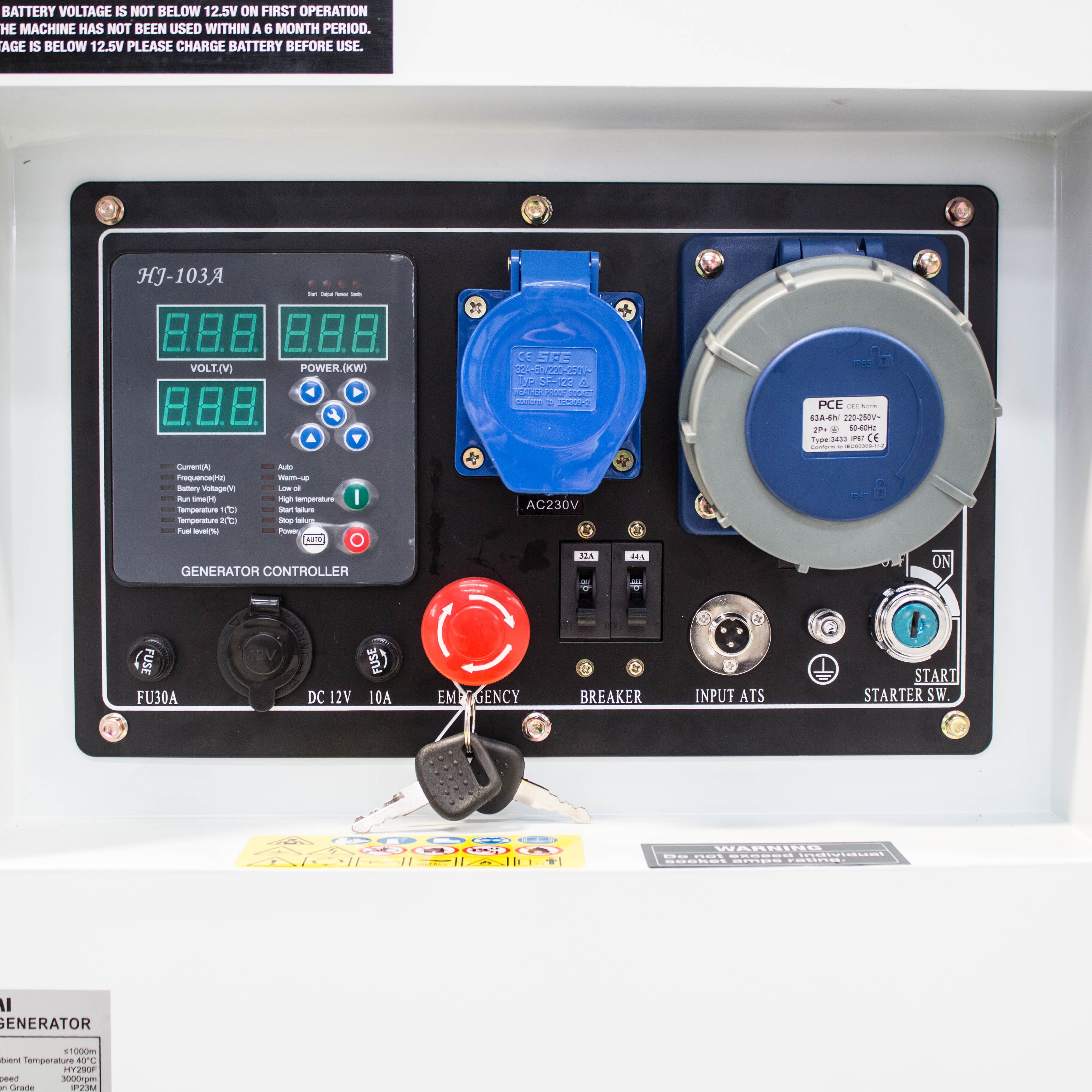

The DHY12500SE is ATS compatible (Automatic Transfer Switch sold separately), automatically switching on during power outages and off when mains power is restored. It also features an easy-to-read digital control panel, overload breakers, and multiple power output sockets for versatile use.
Specifications
| Model | DHY12500SE |
|---|---|
| Maximum Output | 10kW / 12.5kVA |
| Continuous Output | 9.0kW / 11.25kVA |
| Engine Speed | 3000rpm |
| Engine Type | Twin cylinder forced air-cooled |
| Voltage | 230v, 50Hz single-phase |
| Sockets | 1 x 32A, 1 x 63A |
| Fuel Tank Capacity | 60L |
| ATS Compatible | Yes |
| Starting System | 12v key start, 2-wire start, ATS |
| Wheels | 4 wheels (2 steering with brake, 2 fixed) |
| Noise Level @ 7m | 65 to 70dB |
| Dimensions (L x W x H) | 1175mm x 695mm x 1050mm |
| Net Weight | 295kg |
| Engine Air Intake | 1.2 Cubic Meters/Minute |
| Air Cooling Flow Rate | 10.5 Cubic Meters/Minute |
What's in the Box
- Hyundai DHY12500SE Generator
- 12v Key Start System
- Emergency Stop Button
- Digital Control Panel
- 1 x 32A and 1 x 63A Sockets
- User Manual
*ATS module sold separately. Warranty terms apply.
