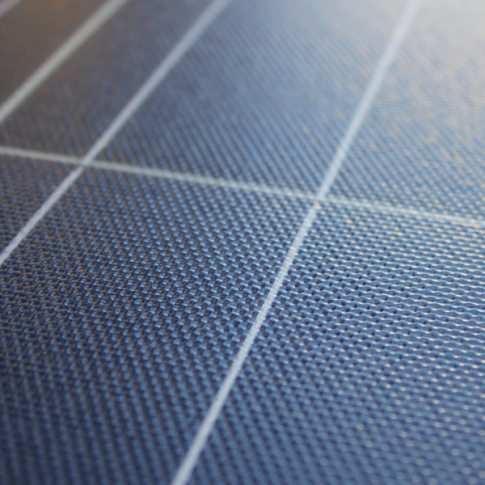

240W semi-flexible solar charging kit with Austrian textured fibreglass solar panel

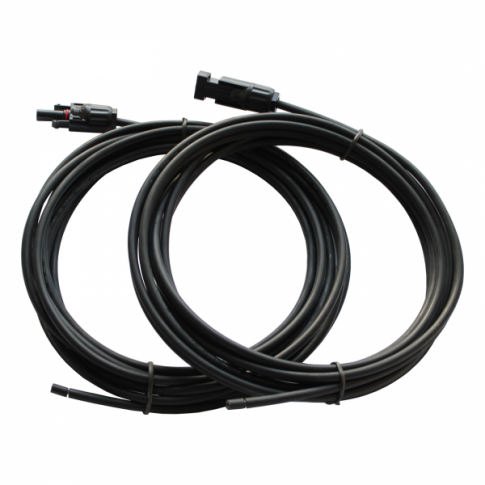

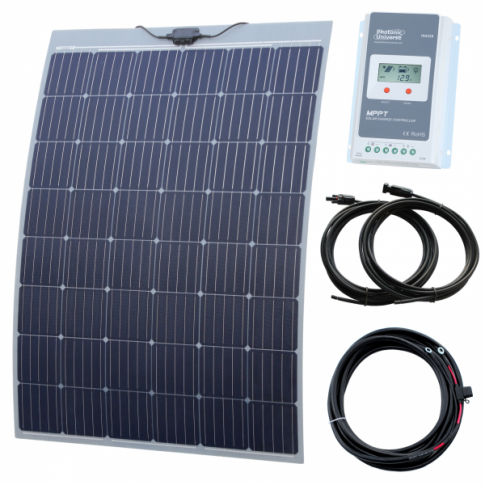

240W 12V solar charging kit which includes a 240W textured flexible solar panel, 20A MPPT solar charge controller with inbuilt LCD display, 5m solar cables with MC4 connectors and a 5m 6.0mm dual core battery cable fitted with a 20A fuse.

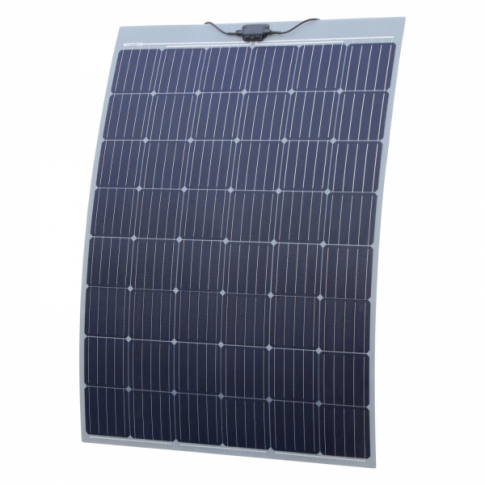

Solar panel specifications:
- Peak power: 240W
- Maximum power voltage: 27.6V
- Maximum power current: 9A
- Open circuit voltage: 33.1V
- Short circuit current: 9.4A
- Dimensions: 1434 x 1020 x 2 mm
- Weight: 4.75 kg

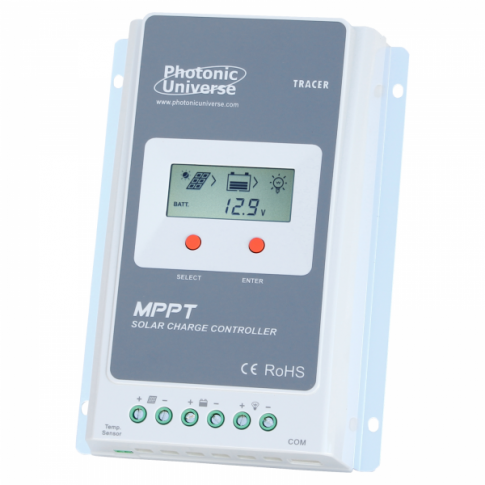

Controller specifications:
- The most advanced MPPT technology to ensure high efficiency (> 95%) of your solar system
- Fully automated operation
- 3 pairs of terminals (solar panel, battery, load) for wires up to 16mm2
- Maximum solar panel voltage: 100V
- Maximum solar panel power: 260W (12V)
- Temperature sensor for automatic compensation (-3mV/°C/2V)
- Comprehensive electronic protection features
- Communication port: RS485/RJ45 interface
- Current limiting function (20A)
- Self-consumption: ≤12mA (12V)
- Working temperature: -25°C to +50°C
- Size: 22 x 15.4 x 5.2 cm
- Mounting dimension: 17 x 14.5 cm
- Weight: 0.94kg
- Multiple mounting holes (5mm diameter) for ease of installation
