Longi Solar 530W MONO Hi-MoX6 Black Frame PERC Half Cell Solar Panel
Note: Due to the size of these modules, a forklift on site is required for unloading.
Looking to install a solar panel for your home, farm, or garden office? These Longi Solar panels are reliable, efficient, and cost-effective, with an attractive payback period. Designed with a robust black frame, they are ideal for domestic, farm, garden office, and similar rooftop installations.

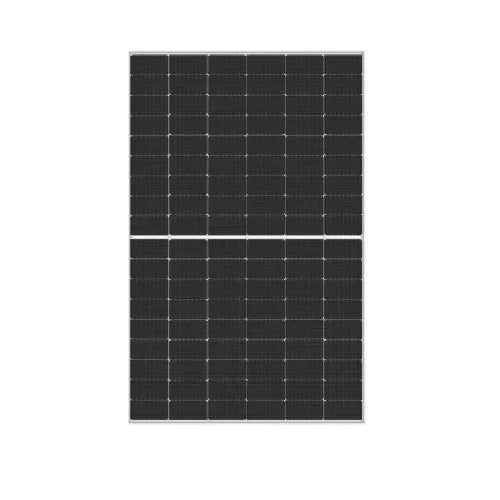

The Longi Solar 530W MONO Hi-MoX6 Black Frame PERC Half Cell (LR5-66HTH-520-540) solar panel is a 530W monocrystalline PV module featuring Longi's proprietary mono wafer and cell technologies. With an impressive 22.3% efficiency, the half-cell configuration delivers high power output, better temperature coefficient, reduced shading losses, and greater mechanical load resistance. These panels come with a 12-year product warranty and a 25-year linear output warranty.
Perfect for off-grid solar energy installations, these panels offer an excellent balance of quality, price, and performance in a compact size.
Features:
- High-efficiency MONO Hi-MoX6 black frame PERC half cell: Capable of producing 530W in optimal sunlight conditions, with a peak efficiency of 22.3%. Actual performance will depend on factors such as elevation, weather, time of year, and positioning relative to the sun.
- More power:
-
- Module efficiency: 22.3%
- Positive power tolerance (0~+3%W)
- Advanced module technology for superior performance
- 12-year product warranty
- 25-year linear performance warranty
-
Expandable for more power: A special feature allows multiple panels to be connected in parallel, increasing the total power output for your solar power system.
-
Durable, dust and water resistant: Designed to withstand various weather conditions, the panel has an anti-reflective and anti-soiling surface to reduce power loss from dirt and dust.
- Enhanced reliability:
-
- Lower internal current and reduced hot spot temperature
- Cell crack risk limited to smaller areas
- Innovative symmetrical module design improves shading tolerance
- Heavy snow load support up to 5400Pa and wind load resistance up to 3600Pa
Superior warranty: 12-year product warranty and 25-year extra linear power output warranty.
Installation: Must be installed by a licensed technician or electrician.
In the box:
- Longi 530W Solar Panel
- Longi 530W Solar Panel Installation Manual
Delivery:
- TWO WORKING DAYS' SHIPPING if ordered by 5 PM on a working day (longer to the Scottish Highlands, islands, and Northern Ireland).
Detailed specifications:
| Rated (peak) power (Wp): 530W in Standard 1000w/m2 solar light |
| Open circuit voltage (Voc): 47.88V (Vmp =40.22V) |
| Short circuit current (Isc): 14.20A (Imp = 13.18A) |
| Efficiency: 22.3% |
| Cell type: Mono-crystalline Silicon |
| Connector type: MC4-Evo2 |
| Certification: IEC 61215 / IEC 61730 |
| Net weight: 26 KG |
| Size: 2094 X 1134 X 35mm |
| Mounting hole gap: 1085mm |
Frequently Asked Questions
What technology does Longi use?
Longi exclusively manufactures mono-crystalline solar panels, specialising in mono-crystalline PERC panels.
Are Longi solar panels high quality?
Longi panels are a reliable and affordable mid-range option from a financially stable company with a strong reputation.
What are the benefits of Longi solar panels?
Longi panels offer lower operating temperatures, which reduce thermal losses and improve reliability and power gain. Their half-cut modules also provide 50% power output in shaded conditions, such as during sunrise and sunset.
What is the efficiency of Longi panels?
The Hi-MO 4 range, using mono-crystalline PERC half-cut cell technology, achieves up to 20.9% efficiency.
Is Longi a Tier 1 solar panel manufacturer?
Yes, Longi is a Tier 1 Chinese company and one of the largest manufacturers of mono-silicon solar panels globally.
