Solar Heating and Cooling System 2.0kW of Heat and 1.5kW of Cooling for 20-25m2 Single-Room Log Cabins, Garden Offices, Tiny Houses, Shepherds' Huts, Shops, Workshops

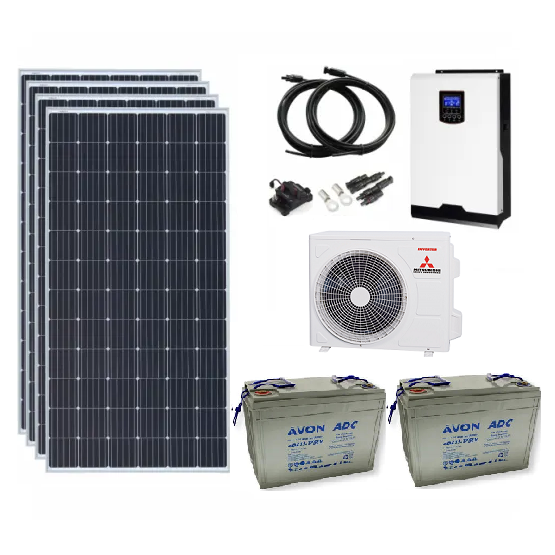

This Solar Heating and Cooling System is designed for a single-room log cabins, garden offices, tiny houses, or shepherds' huts. The available roof space should not be less than 4.6m x 1.8m to install four solar panels in one row; this can be on a flat or single-pitched roof or one side of a double-pitched roof. The number of solar panels can be increased (up to 3000W in total) if they are installed on the ground. The system comprises:

• 4 x AIKO Neostar 2P 465W N-Type ABC 54 Cell Black Frame Gen 2 Solar Panels (other solar panels on request),
• 2 x AVON Deep Cycle AGM-GEL 12V 175Ah Solar Battery,
• 1 x ICONICA Off-Grid Hybrid 3000W 24V Pure Sine Wave Inverter,
• 1 x MITSUBISHI Single-Split SRK15ZTL-W 2.0kW Heating1.5kW Cooling Air-to-Air Heat Pump Air Conditioner,
• 1 x Air Conditioner Installation Wall Bracket BJ Type 2 Brackets 60kg Load,
• 1 x Air Conditioning Pipe Kit 1/4" + 3/8" 2m (other pipe lengths on request),
• 1 x Complete Set of Solar Grounding, Cables, Disconnectors, and Accessories, and
• (Optionally) 1 x Solar Mounting System for installation of solar panels on a roof made of specific roofing material (shingles, metal tile, or other).

Please note the Mitsubishi Air-to-Air Heat Pump Air Conditioner must be installed by an FGAS certified installer in accordance with the FGAS Regulations.

The price includes a basic set of solar grounding, cables, protection disconnectors, and accessories required to create a fully operational system. User manuals and a connection diagram will be supplied with your order. Mounting is not included; if you require a mounting system, select a suitable option here or contact us for advice.

The system must be installed by a licensed electrician or technician in compliance with all applicable regulations and guidance. If you plan to use the cabin as a residence, the guidance provided here must be followed.

FREE 2-3 WORKING DAYS' DELIVERY within the UK (longer to the Highlands, islands and Northern Ireland).

Features:

• AIKO NEOSTAR 2P 465W N-TYPE ABC 54 CELL BLACK FRAME GEN 2 SOLAR PANELS are compact, reliable, efficient and cost-effective with an attractive payback period.  The modules have an efficiency rate of 23.3%. The solar panels have a heavy snow load of up to 5400Pa and an increased wind load of up to 2400Pa. The panels are well-designed with a durable black frame. These panels are suitable for domestic, farm, garden office and similar rooftop installations. The panels have a 15-year product warranty.

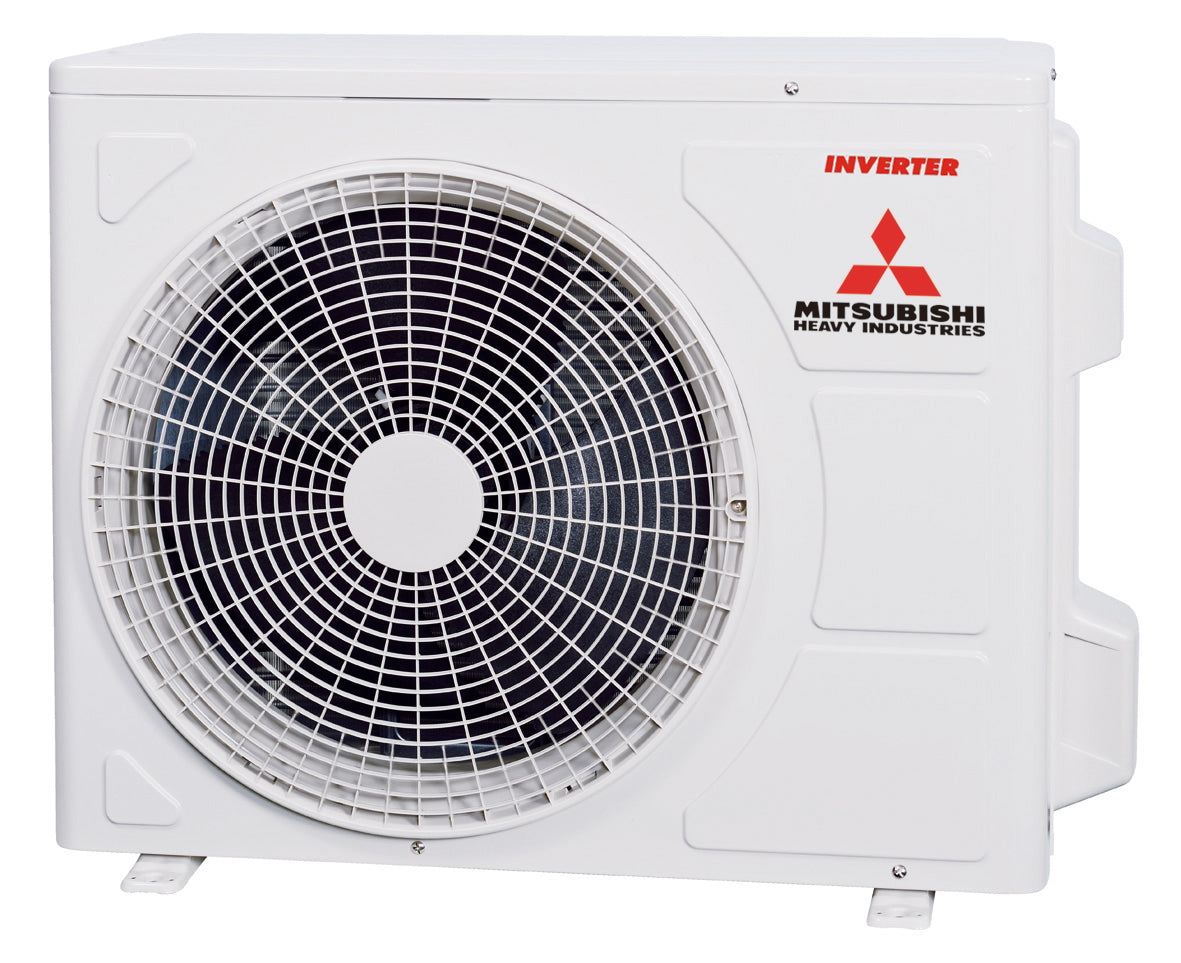

• MITSUBISHI SRK15ZTL-W AIR-TO-AIR HEAT PUMP AIR CONDITIONER has high seasonal efficiency and an impressive A++ rating, ensuring cost-effective cooling and heating year-round. The unit utilises a twin rotary compressor for  saving energy and uses eco-friendly R32 refrigerant. It is a space-saving solution given its slim-profile indoor design, with a reduced height of just 294mm, allowing for installation above door openings and windows and optimising your space.

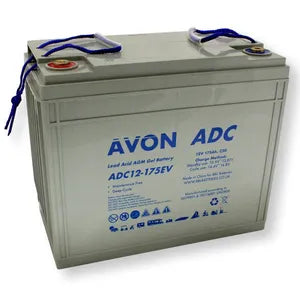

• AVON ADC12-175EV 175Ah (C20) DEEP CYCLE COMBINED AGM GEL BATTERY combines AGM design with nano silica GEL, this combination improves the overall performance and gives the lifecycle of 600 cycles at 80% DOD (depth of discharge) or 1200 cycles at 50% DOD - this is 1.5 times higher than standard AGM batteries. The battery has a warranty of 1 to 5 years. The warranty on the battery covers all faults caused by manufacturing or material.

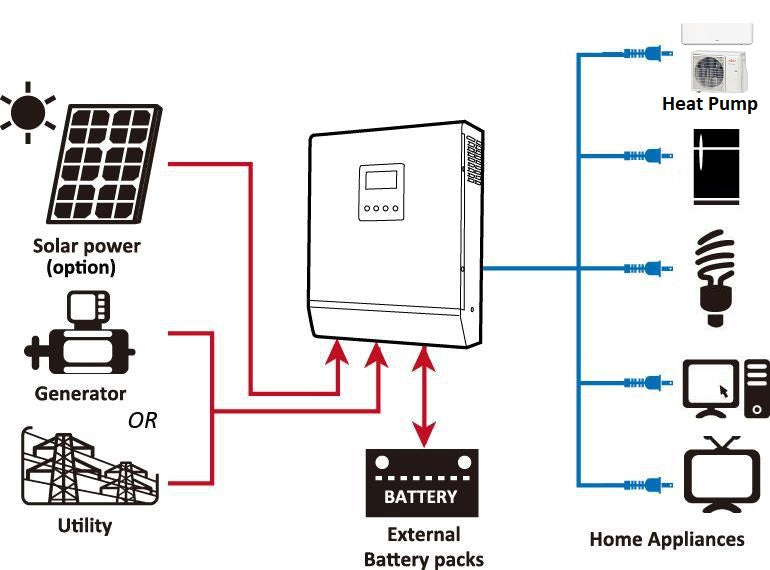

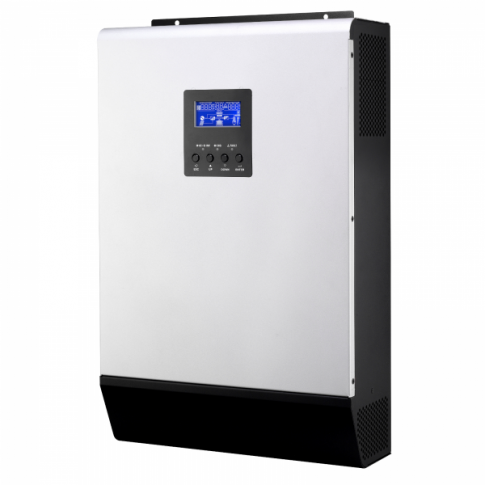

• ICONICA OFF-GRID HYBRID 3000W 24V PURE SINE WAVE INVERTER / CHARGER WITH INBUILT 80A MPPT SOLAR CONTROLLER AND 60A MAINS / GENERATOR BATTERY CHARGER intelligently combines the functions of a 3000W pure sine wave inverter, 80A MPPT solar charge controller and a 60A smart battery charger in one single unit. This model can accept input from 4000W solar panels, mains power, a generator or a battery - either from one or multiple input sources. In addition to its unique hybrid capability, this innovative inverter features advanced communication functions, along with highly customisable settings.
• THE INVERTER CAN GENERATE 3000W OF CONTINUOUS AC POWER and up to 6000W of AC power at peak times. The built-in 80A MPPT solar charge controller regulates the input from solar panels to batteries, with a full range of safety functions including protection against overcharge, overheating and reverse current. Advanced MPPT technology extracts the maximum possible power output from solar panels and operates at up to 98% efficiency. This inverter has a maximum allowed solar input of 4000W. Performance data for the solar array are displayed on the LCD screen.

Detailed specifications

For more information, call 020 8064 0335 or email info@energian.co.uk.
