RIIO II 5.0kW 48V Single Phase Grid Backup Inverter with 60A AC Charger

Powerful and Versatile: RIIO II 3000W 48V Grid Backup Inverter with 35A AC Charger

The RIIO II inverter charger is a versatile transformer-based inverter charger that seamlessly combines backup power, off-grid functionality, and energy storage system (ESS) capabilities. Designed to support high surge loads, it features an ultra-fast 4ms transfer time to ensure uninterrupted power during outages. This innovative inverter charger supports up to nine parallel units (three per phase) for expanded power capacity, making it an excellent choice for a wide range of applications.

This inverter charger is compatible with mainstream lithium battery brands and generators, making it a versatile addition to your power system. It is suitable for both stationary and mobile applications, providing reliable power for remote properties, holiday homes, and backup systems in areas with frequent power outtages.

Installation available - contact us for a quote.

Key Features:

•  High surge power handling: The RIIO II can efficiently manage heavy loads, with the capacity to deliver exceptional surge power when needed. With a swift 4ms transfer time, it quickly switches to battery power during power cuts, ensuring your critical appliances continue running.
• Flexible input/output configurations: This inverter charger comes with a built-in smart port that allows for dual AC input or output configurations, enabling a high degree of flexibility for load management. Whether using mains power, or generators, the RIIO II is designed to adapt seamlessly.

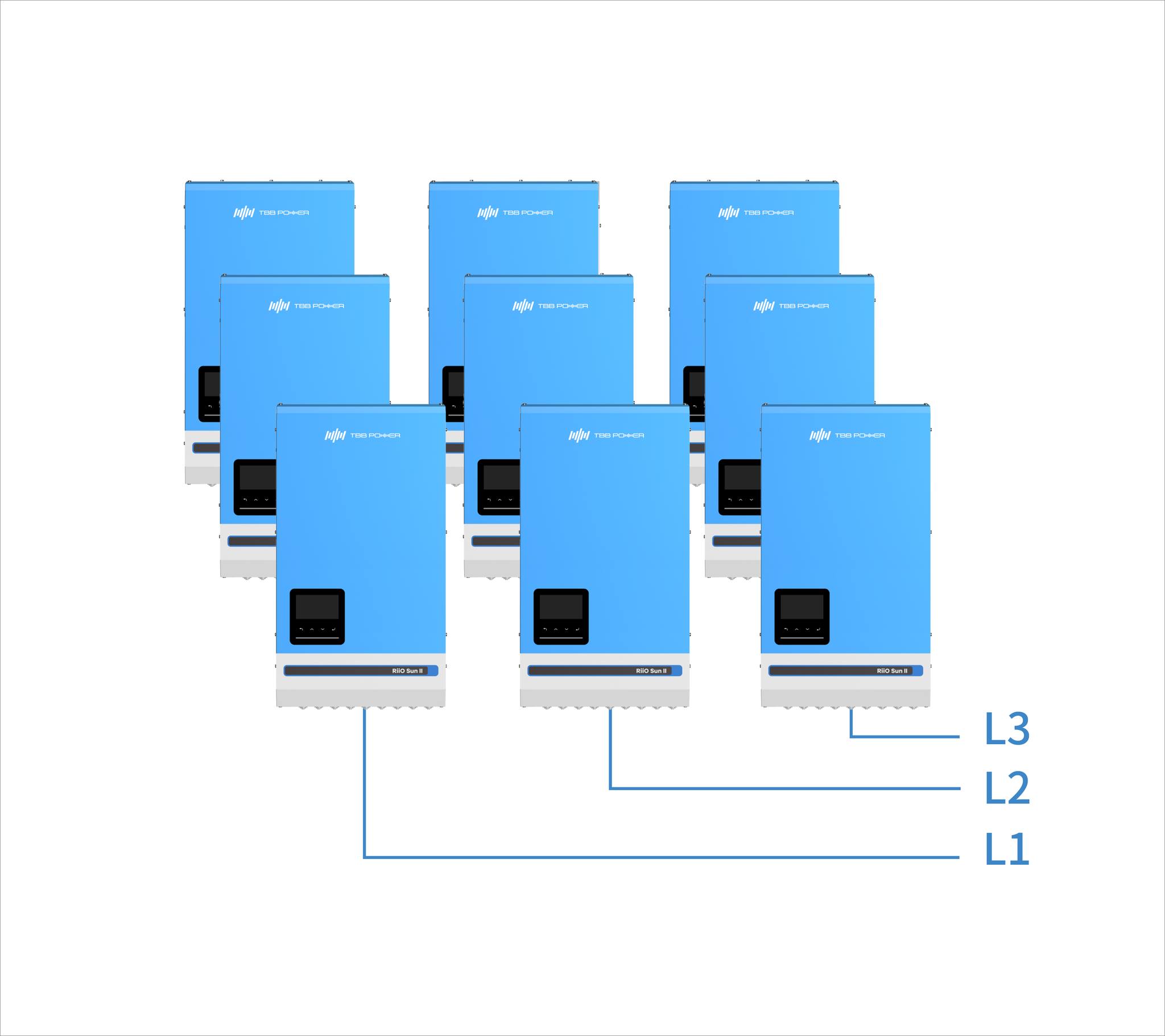

• Parallel and three-phase capability: The RIIO II can be configured in parallel with up to 3 units in single-phase applications, or up to 9 units in three-phase applications, achieving a maximum output of 45KVA. This feature is ideal for larger installations with higher power demands.
• ESS capabilities: The RIIO II inverter seamlessly integrates with the E4 LCD Monitor and IC-METER (sold on request), unlocking advanced Energy Storage System (ESS) functionalities. This maximises self-consumption, which helps to lower electricity bills through advanced peak shaving and time-of-use management.

• 50A transfer switch: The AC transfer switch in the RIIO-II is rated up to 50A, allowing for up to 11.5kW of power to be passed through to the loads from the AC input when the inverter is in bypass.

Additional Intelligent Features:

• AGS functionality: The Automatic Generator Start (AGS) function ensures that your generator operates only when necessary, offering convenience and efficiency.
• Power assist and control for generators: Power assist enables a small generator to handle heavy loads by supplementing its capacity when needed. Power control ensures the generator operates at its optimal consumption level, maintaining a consistent output to reduce significantly fuel consumption.
• ECO mode: Designed to extend the backup time, this mode reduces self-consumption, maximising the inverter’s efficiency.
• Remote monitoring: Users can monitor performance through the Nova Web and mobile app via the TBB-KIN2 Kinergy-II Wi-Fi module, controlling and making adjustments from anywhere.
• Easy operation and maintenance: The RIIO II automatically restarts when AC power is restored, and features a user-friendly interface for easy operation.
• Enhanced reliability: With a maximum inverter efficiency of 94%, the RIIO II delivers reliable performance while ensuring minimal energy loss during operation.


Delivery:

• FREE 2-3 WORKING DAYS' shipping if ordered by 5PM on a working day (longer to the Scottish Highlands, Islands and Northern Ireland).

Detailed specifications:

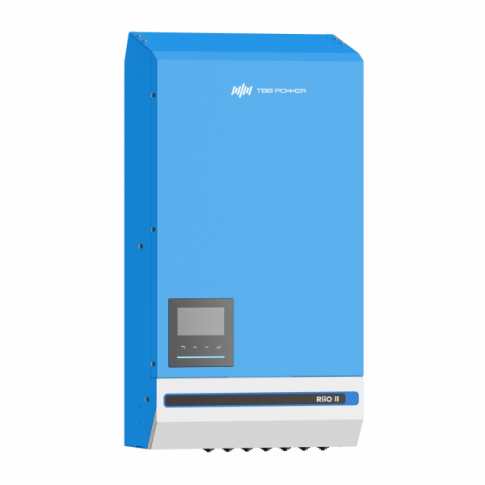

Model: RIIO II 5KVA-S

Nominal/Input battery voltage: 48Vdc/45-65Vdc

Continuous/Max. power output: 5000VA/5000W 220-240VAC 50Hz

Peak power: 10000W

Output waveform: Pure sine wave

Battery useable types: AGM/GEL/OPzV/Lead-Carbon/Flooded/ Traction/Lithium

AC input range: 175-265VAC/45-65Hz

Maximum mains AC charging current: 60A

AC transfer current: 50A

Transfer time: 4ms (<15ms in Weak AC source mode)

Peak inverter efficiency: 94%

Zero load power consumption: 22W

Operating temperature: -20°C to 65°C

Ingress protection: IP21

Size:  570 x 310 x 154 mm

Net weight: 27kg
