Powering Your Devices with Cutting-Edge Solar Technology
This high quality, waterproof 120W folding solar panel is designed to provide free power for charging 12V/24V batteries, for example in vehicles and boats (motorhome, caravan, camper, narrow boat, yacht etc) or any other system with a 12V/24V battery or battery bank. This is the ideal solution for experiencing the benefits of solar without the permanency of a mounted solar panel, as this panel can be folded and stored away when not in use.
This high efficiency 120W (60W + 60W) 12V/24V folding monocrystalline solar panel comes with:
- Adjustable aluminium stand, handle and latches
- 5m solar cable
- Storage / protective case
The folding solar panel has several important features which make it a truly unique, premium quality product:
- The solar panel is completely waterproof, so the unit can be used in all weather conditions
- The high efficiency (60W + 60W) monocrystalline solar panels are made of high quality solar cells
-
The storage bag is not just a dust cover – it includes a layer of foam for added protection
Features:
-
FLEXIBLE CONTROLLER CHOICE: This folding solar panel is supplied without a solar charge controller, allowing you to choose the controller best suited to your application.
-
COMPATIBLE WITH EXISTING CONTROLLERS: You can use your existing solar charge controller with this panel or pair it with any of our wide range of controllers.
-
WIDE RANGE OF CONTROLLERS: Our controllers feature LCD displays, MPPT, dual battery, buck-boost capability, mobile app connectivity, and more, providing you with increased control over your system.
-
REMOTE MOUNTING: This folding panel allows you to remotely mount a solar charge controller in a convenient location for easy monitoring and quick access.
-
EASY CONNECTIVITY: It can be easily connected to one or more similar folding panels if necessary.
-
EXPANDABLE SYSTEM: The entire system can be connected through a larger solar charge controller to increase energy yield.
-
PRE-WIRED FOR 12V: This panel comes pre-wired for a 12V battery connection and will require re-wiring for 24V. Alternatively, a buck-boost solar charge controller can be used.
-
SOLAR CABLE INCLUDED: The folding solar panel comes with a 5m bare-ended solar cable to connect the panel to your choice of solar charge controller.
-
USER-FRIENDLY DESIGN: The design incorporates a stand that is easy to set up and adjust, while the handle and latches ensure ease of storage and portability.
-

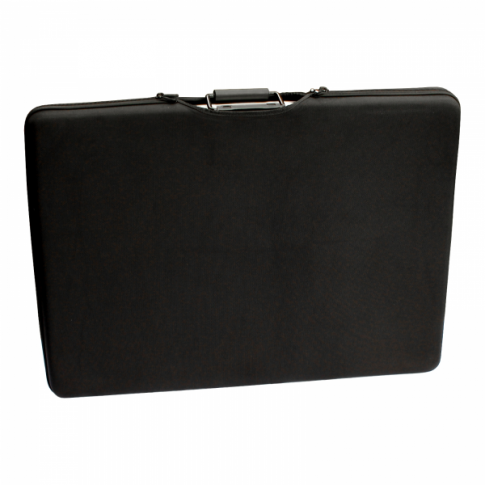

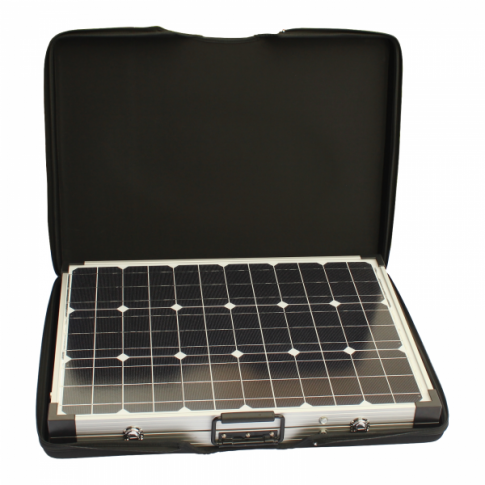

PROTECTIVE STORAGE CASE: The storage case included with the panel features a foam layer providing protection for the glass and frame, preventing any accidental damage.
-
DURABLE CONSTRUCTION: Additionally, the solar panels' corners are protected by plastic shields, reducing the risk of damage.
Specifications:
- Peak power: 120W
- Maximum power voltage: 17.5V
- Maximum power current: 6.86A (2 x 3.43A)
- Open circuit voltage: 21.6V
- Short circuit current: 7.4A (2 x 3.7A)
- Power allowance: +/- 3%
- Cable: 5m 4.0mm2 single core solar cable
- Dimensions: 51 x 77 x 7 cm (folded)
- Weight: 12.8kg
Warranty: 1-year warranty. Solar cells are guaranteed to produce at least 90% of nominal power for 10 years and 80% for 25 years.
Installation
This solar panel is not supplied with a user manual. A detailed user manual will be provided with your chosen solar charge controller.
In the Box:
- 120W 12V/24V Folding Solar Charging Kit
- Solar Controller
- 5m Cable
- Crocodile Clips
- Storage Bag
